Advantech UTC-315 User Manual

29 UTC-315 User Manual

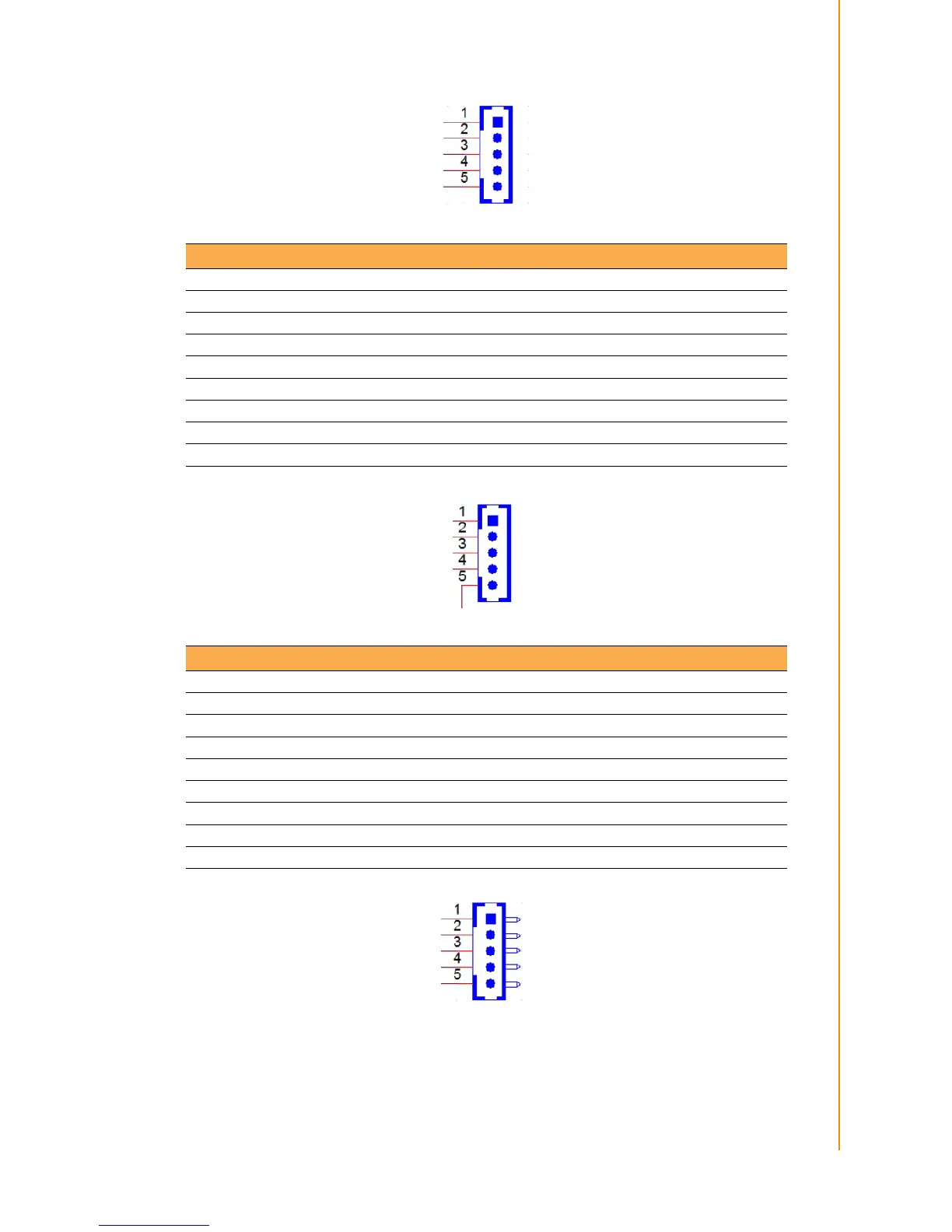

Appendix A I/O Pin Assignments
Table A.6: CN8: Internal USB
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin name
1+5V
2D-
3D+
4GND
5GND
Table A.7: CN9:Touch
Part Number 1655005110
Footprint WF_5P_100_RA_D
Description WAFER 5P 2.54mm 90D(M) DIP 2542-WR-5
Pin Pin name
1Y+
2Y-
3 SENSE
4X+
5X-
