UTC-315 User Manual 40

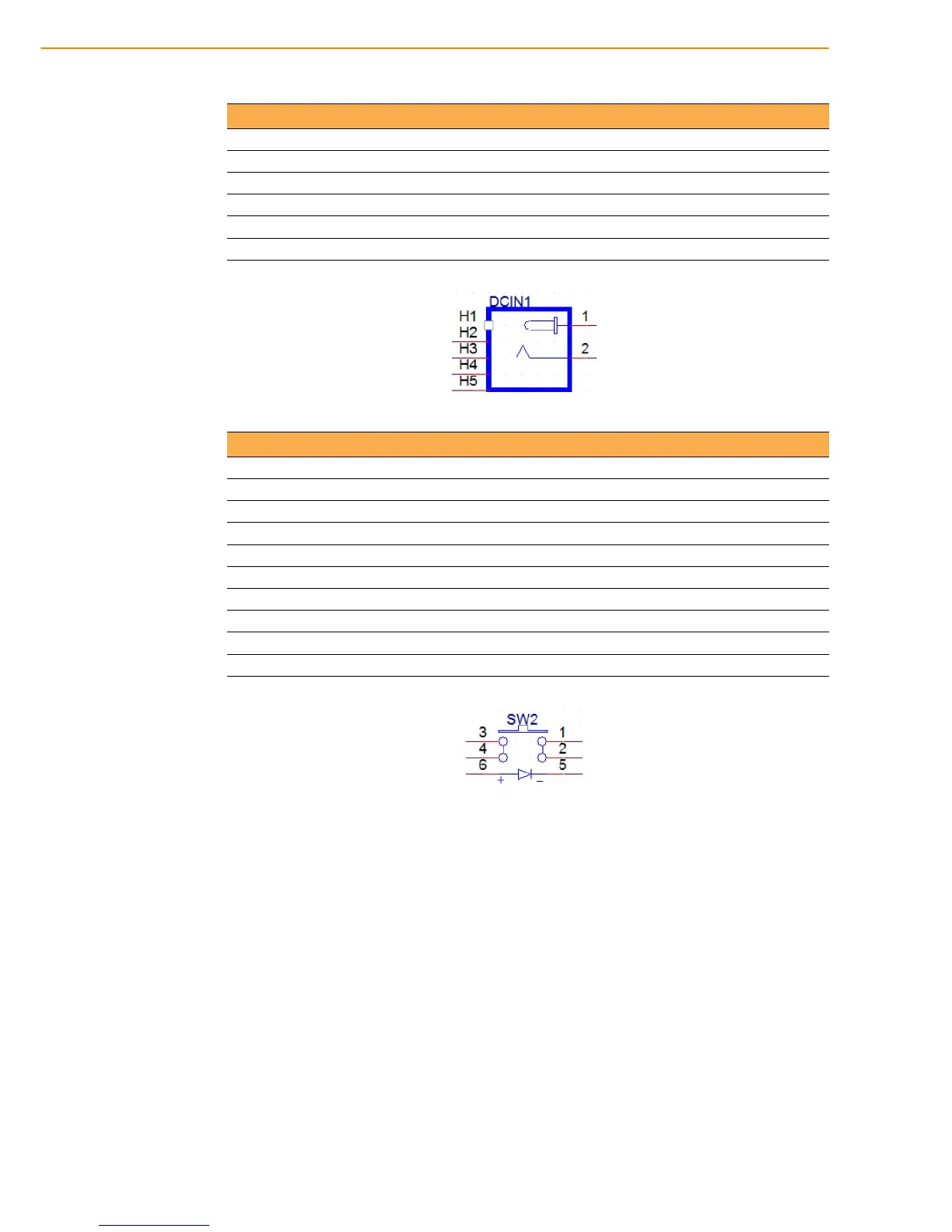

Table A.22: CN31: DC-IN
Part Number 1652005624
Footprint PJ_2P_2DC-G213B200
Description DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200
Pin Pin name
1DC_IN
2GND
Table A.23: SW2 BUTTON: Power button
Part Number 1600000055
Footprint SW_6P_TC003-N11AABRGXX-RK_D
Description PUSH SW DIP 6P W/LED WO/Pb TC003-N11AABRGXX-RK
Pin Pin name
1GND
2GND
3ATX_PWRBTN#
4ATX_PWRBTN#
5+5V
6GND
