37 UTC-315 User Manual
Appendix A I/O Pin Assignments

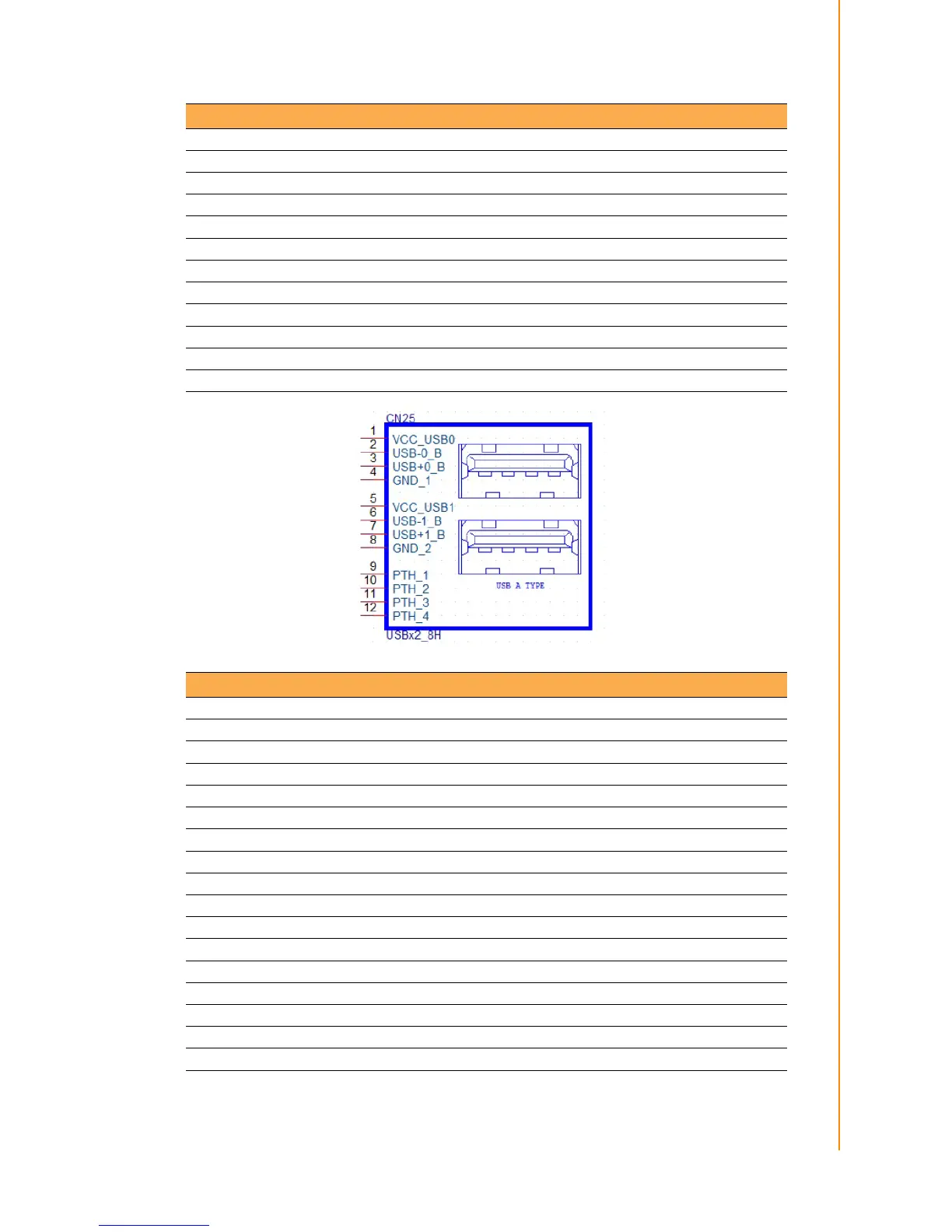

Table A.17: CN25: External USB
Part Number 1654009513
Footprint USB_8P_UB1112C-8FDE-4F
Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F
Pin Pin name
1+5VSB
2D-
3D+
4GND
5+5VSB
6D-
7D+
8GND
Table A.18: CN26: External USB
Part Number 1654010199
Footprint USB_13P_UEA1112C-UHS6-4F
Description USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
Pin Pin name
1+5VSB
2D0-
3D0+
4GND
5RX_D-
6RX_D+
7GND
8TX_D-
9TX_D+
10 +5VSB
11 D1-
12 D1+
13 GND
