A.1 PIN Assignments

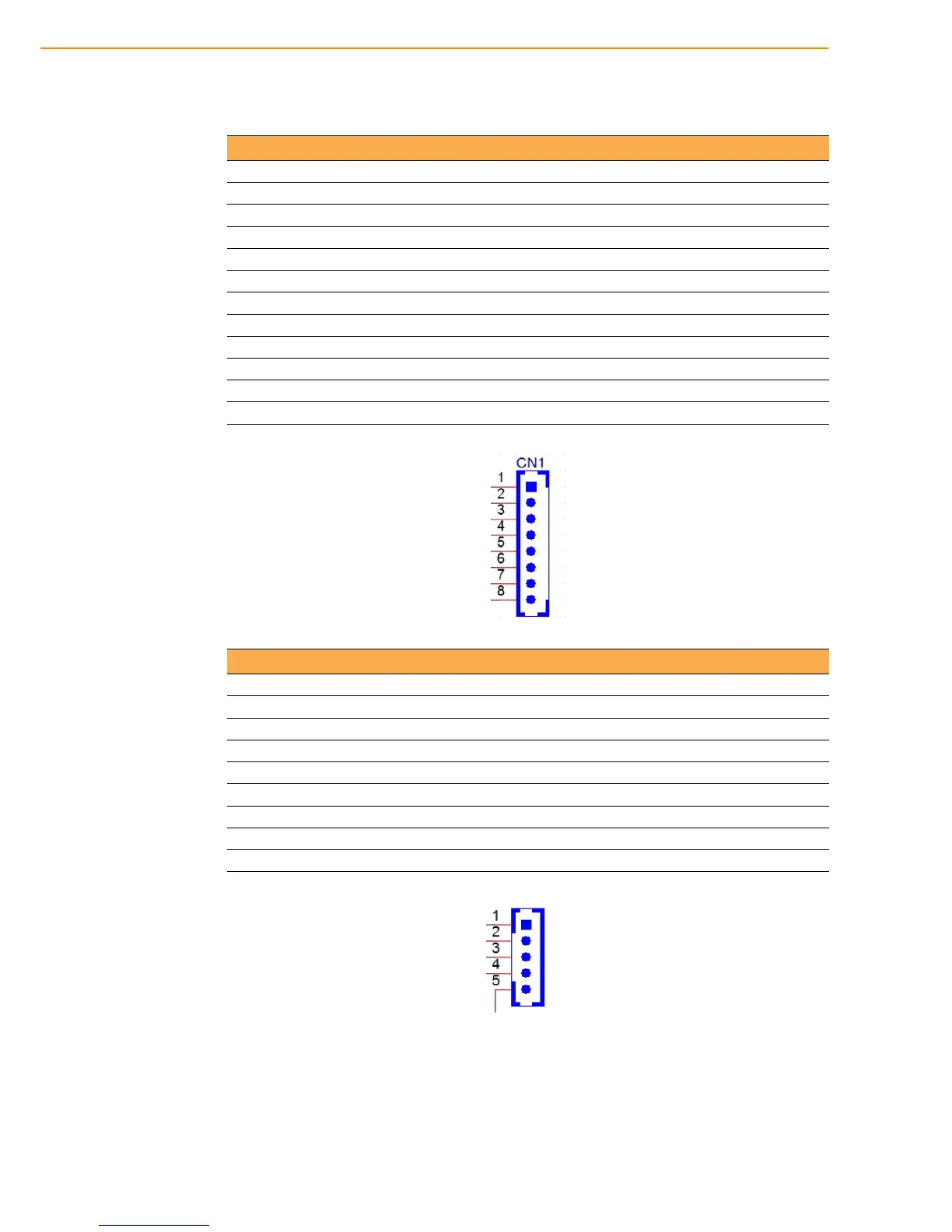

Table A.1: CN1: Backlight
Part Number 1655004512-01
Footprint WF_8P_49_BOX_D
Description WAFER BOX 8P 1.25mm 180D(M) DIP A1251WV0-8P
Pin Pin name
1 +12V_INVERTER
2 +12V_INVERTER
3GND
4GND
5 BKLT_EN
6BRIGHT1
7 +12V_INVERTER
8GND
Table A.2: CN3: Internal USB
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin name
1+5V
2D-
3D+
4GND
5GND
