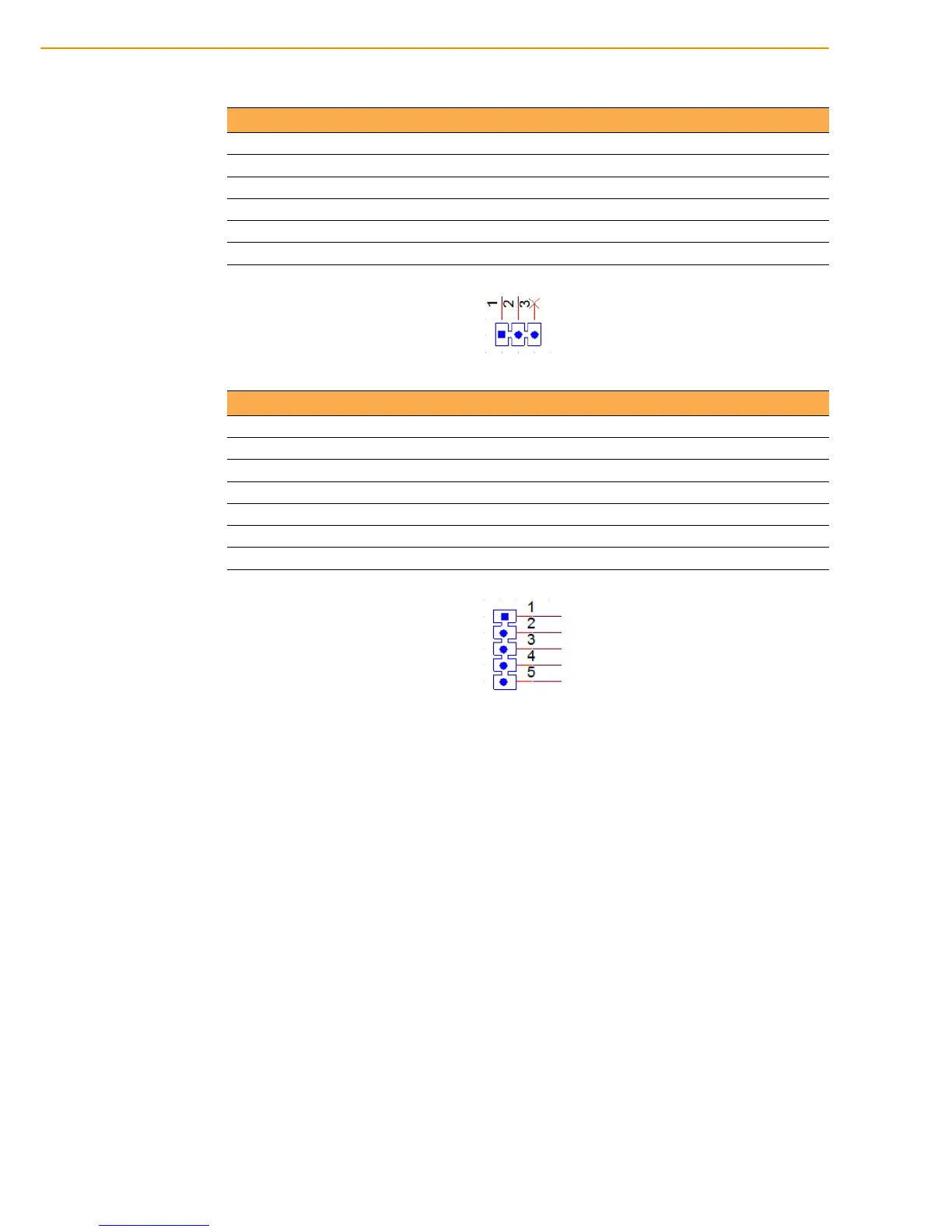

Table 4.5: JP4:AT/ATX POWER SEL
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3*1P 180D(M) 2.0mm DIP SQUARE W/O Pb
Setting Function
(1-2) AT
(2-3)* ATX
Table 4.6: CN17:COM1 Ring
Part Number 1653005101
Footprint HD_5x1P_79_D
Description PIN HEADER 5x1P 2.0mm 180D(M) DIP 1140-000-05SN
Setting Function
(1-2) RING
(3-4)* COM1 RI output +5V
(4-5)* COM1 RI output +12V
