Advantech UTC-315 User Manual

23 UTC-315 User Manual
Chapter 4 Jumper Settings and Connectors
4.2 Jumpers
4.2.1 Jumper List
4.2.2 Jumper Settings

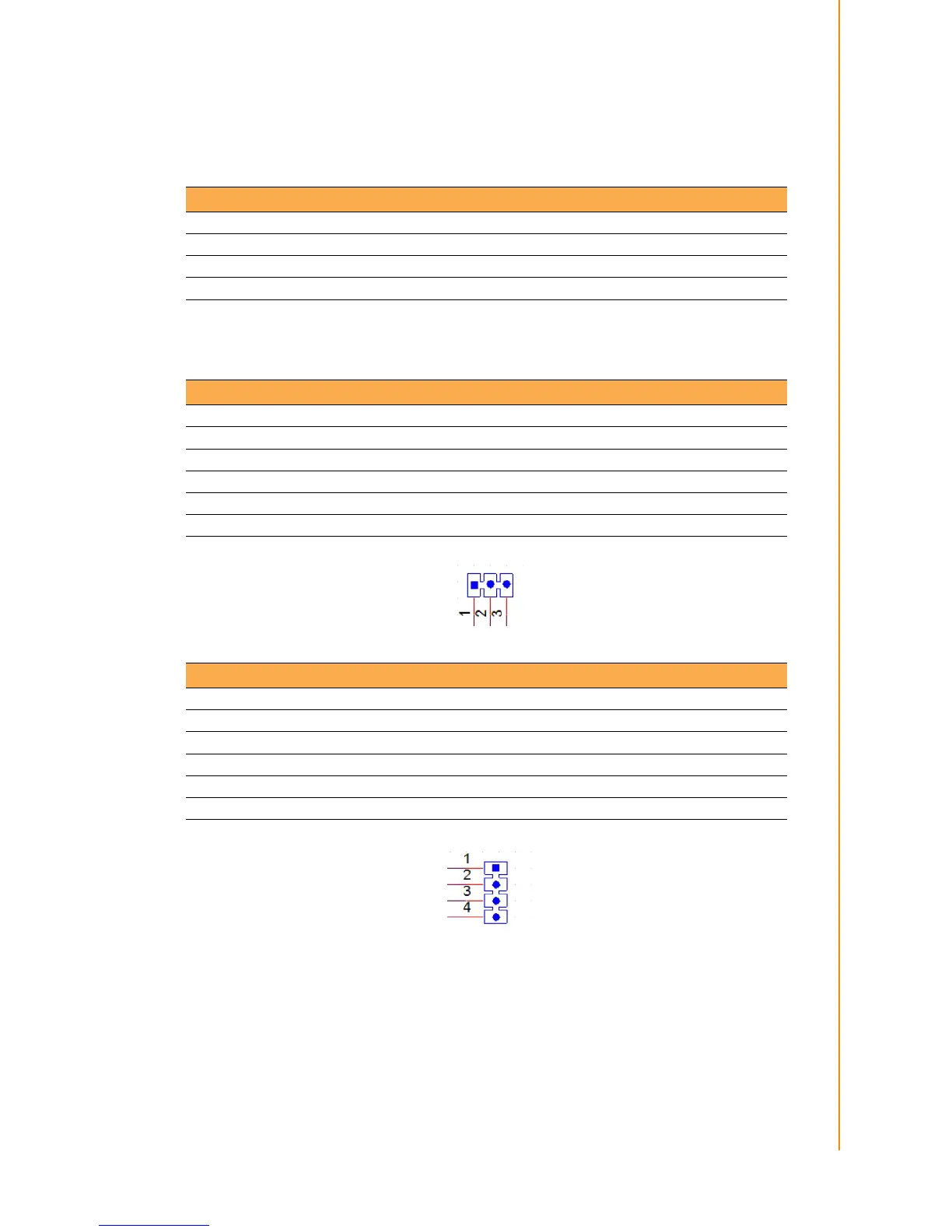

Table 4.2: Jumper List
JP1 LCD POWER
JP3 Clear CMOS
JP4 AT/ATX POWER SEL
CN17 COM1 RING
Table 4.3: JP1:LCD POWER
Part Number 1653003100
Footprint HD_3x1P_100_D
Description PIN HEADER 3x1P 2.54mm 180D(M) DIP 205-1x3GS
Setting Function
(1-2) 5V
(2-3)* 3.3V
Table 4.4: JP3:Clear CMOS
Part Number 1653004101
Footprint HD_4x1P_79_D
Description PIN HEADER 4x1P 2.0mm 180D(M) DIP 21N12050
Setting Function
(2-3)* Normal
(3-4) Clear CMOS
