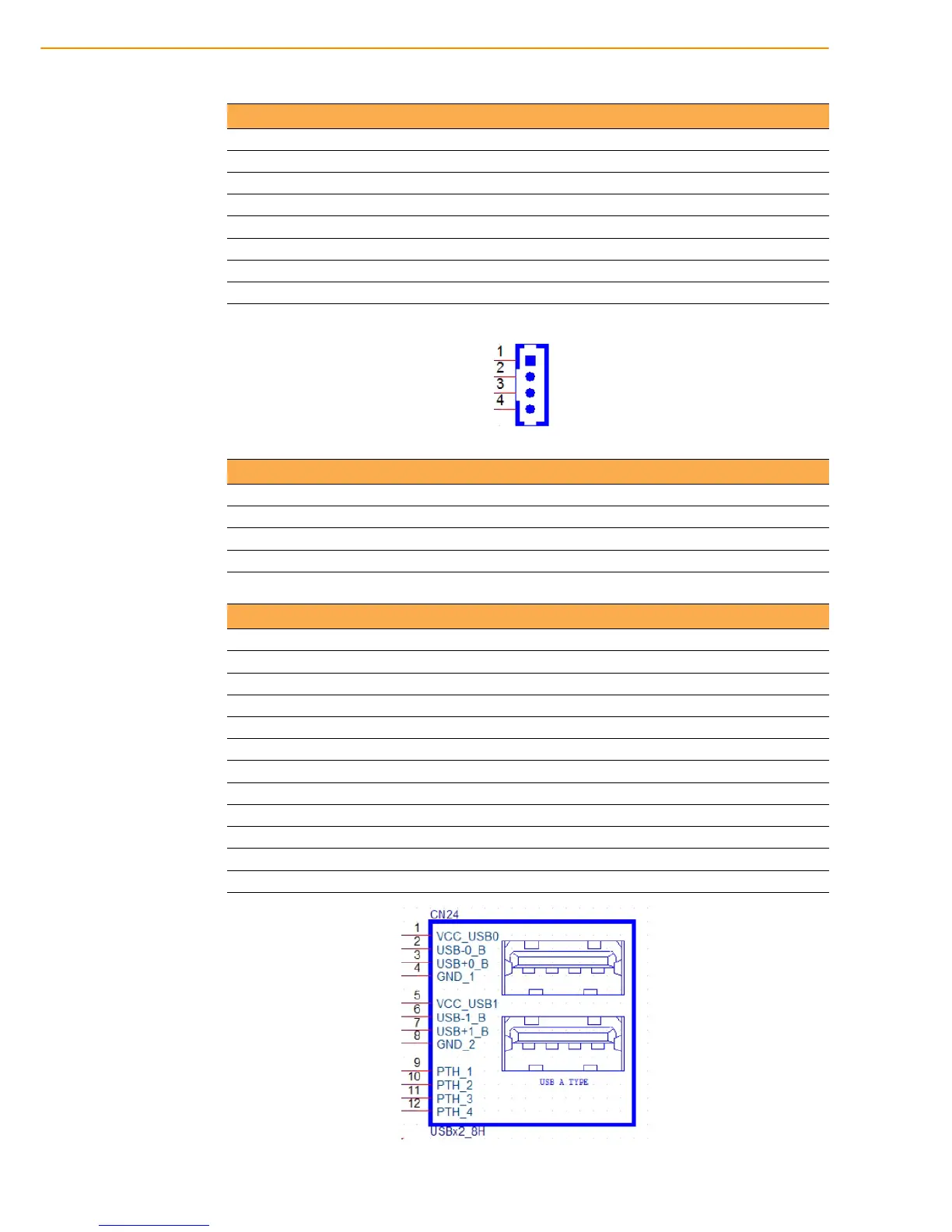

UTC-315 User Manual 36
Table A.14: CN22:SPEAKER
Part Number 1655304020
Footprint WF_4P_79_BOX_R1_D
Description WAFER BOX 2.0mm 4P 180D(M) W/LOCK A2001WV2-4P
Pin Pin name
1 AUD_OUTA-
2 AUD_OUTA+
3 AUD_OUTB+
4 AUD_OUTB-
Table A.15: CN23: LAN1/LAN2
Part Number 1652003274
Footprint RJ45_28P_RTB-19GB9J1A
Description PHONE JACK RJ45 28P DIP RTB-19GB9J1A
Pin Pin name
Table A.16: CN24:External USB
Part Number 1654009513
Footprint USB_8P_UB1112C-8FDE-4F
Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F
Pin Pin name
1 +5VSB
2D-
3D+
4GND
5 +5VSB
6D-
7D+
8GND
