UTC-315 User Manual 28

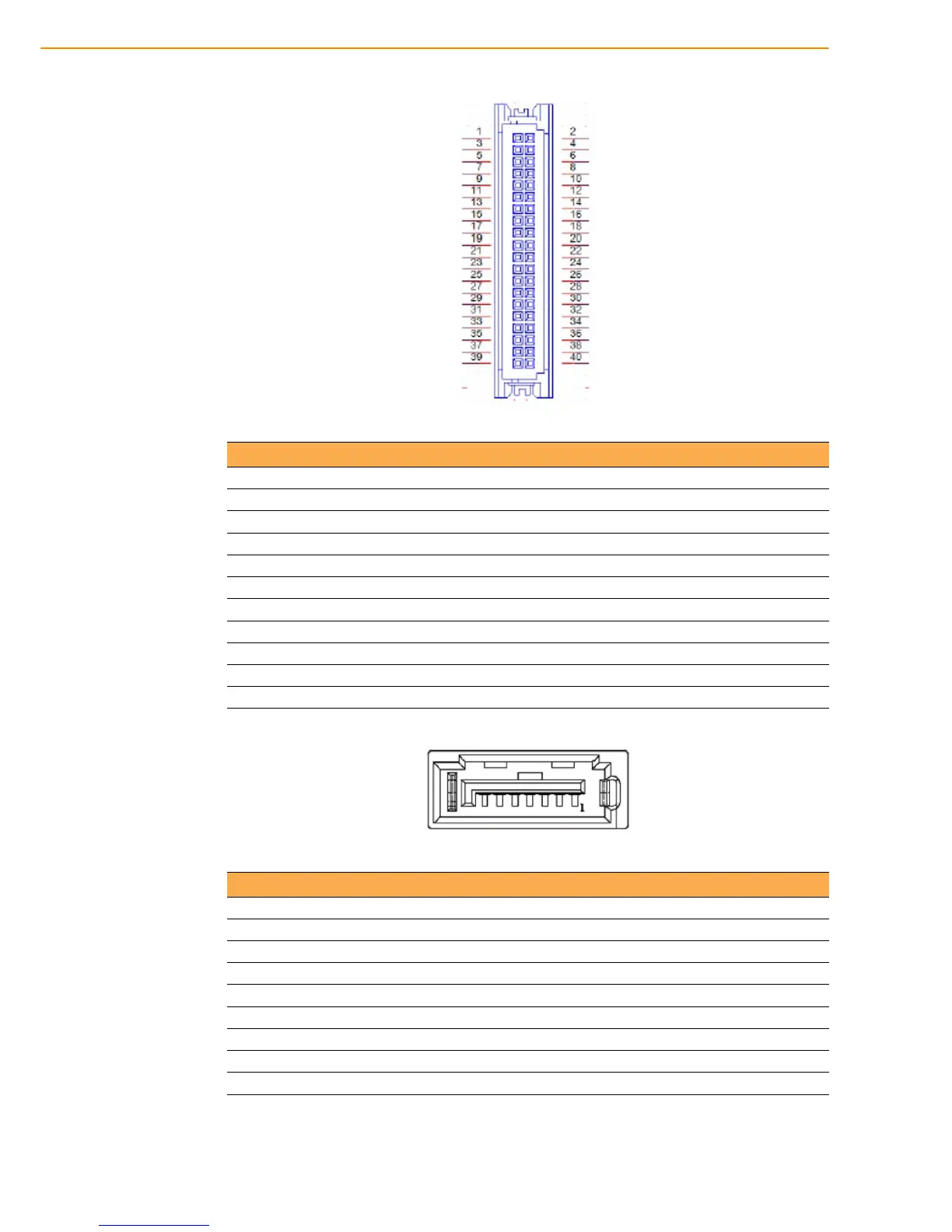

Table A.4: CN6: SATA
Part Number 1654004659
Footprint WF_5P_98_BOX_D
Description WAFER BOX 5P 2.5mm 180D(M) DIP 2503-WS-5
Pin Pin name
1GND
2TX+
3TX-
4GND
5RX+
6RX-
7GND
Table A.5: CN7:SATA POWER
Part Number 1659254005
Footprint SATA_7P_WATM-07DBN4A3B8UW_D
Description Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8
Pin Pin name
1 +3.3V
2GND
3+5V
4GND
5 +12V
