UTC-315 User Manual 38

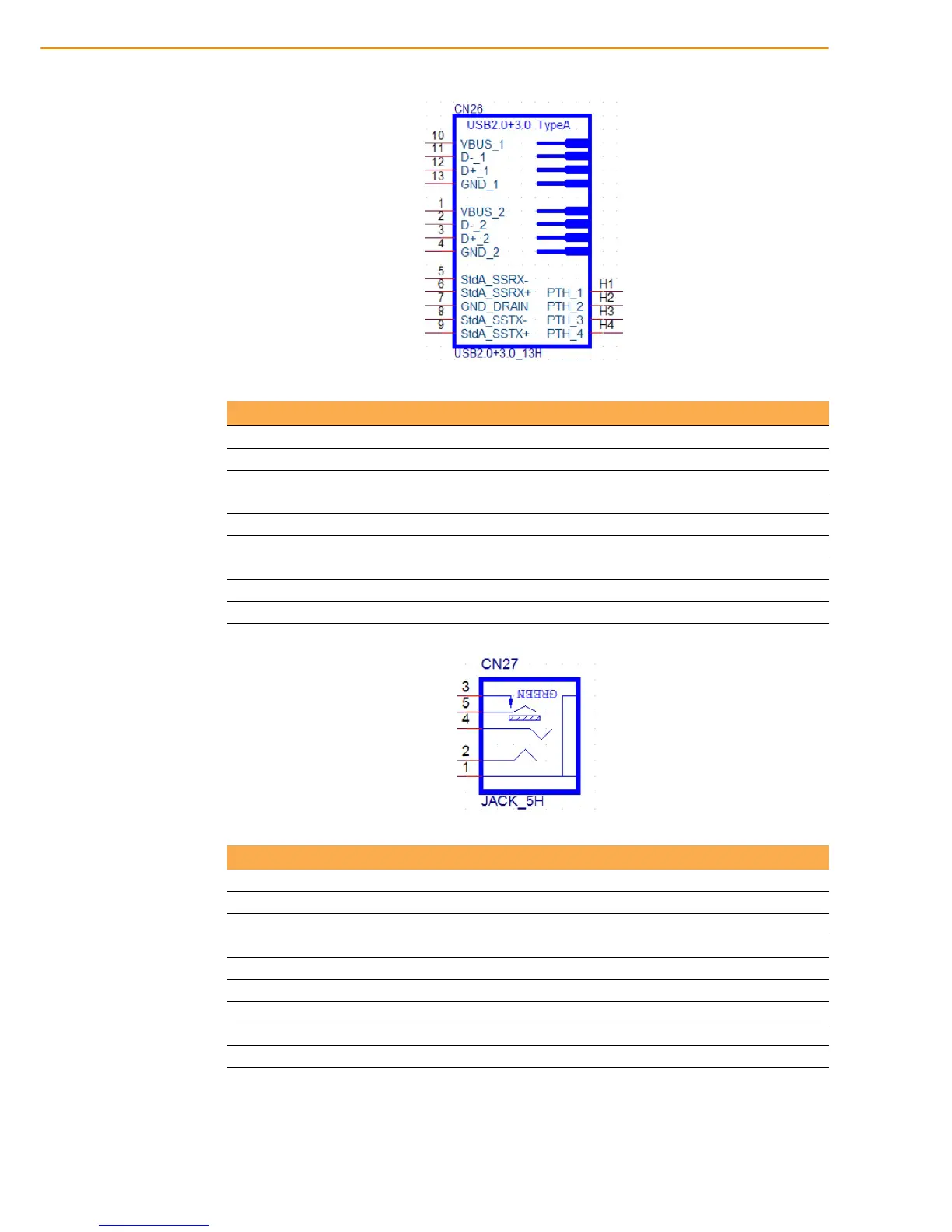

Table A.19: CN27:Line-out
Part Number 1652001586
Footprint KUONYI_PJ-2508PC-5-L
Description PHONE JACK 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P
Pin Pin name
1GND
2OUT_L
3JD
4OUT_R
5GND
Table A.20: CN28:MIC-IN
Part Number 1652001584
Footprint KUONYI_PJ-2508PA-5-L
Description PHONE JACK 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb
Pin Pin name
1GND
2MIC_L
3JD
4MIC_R
5GND
