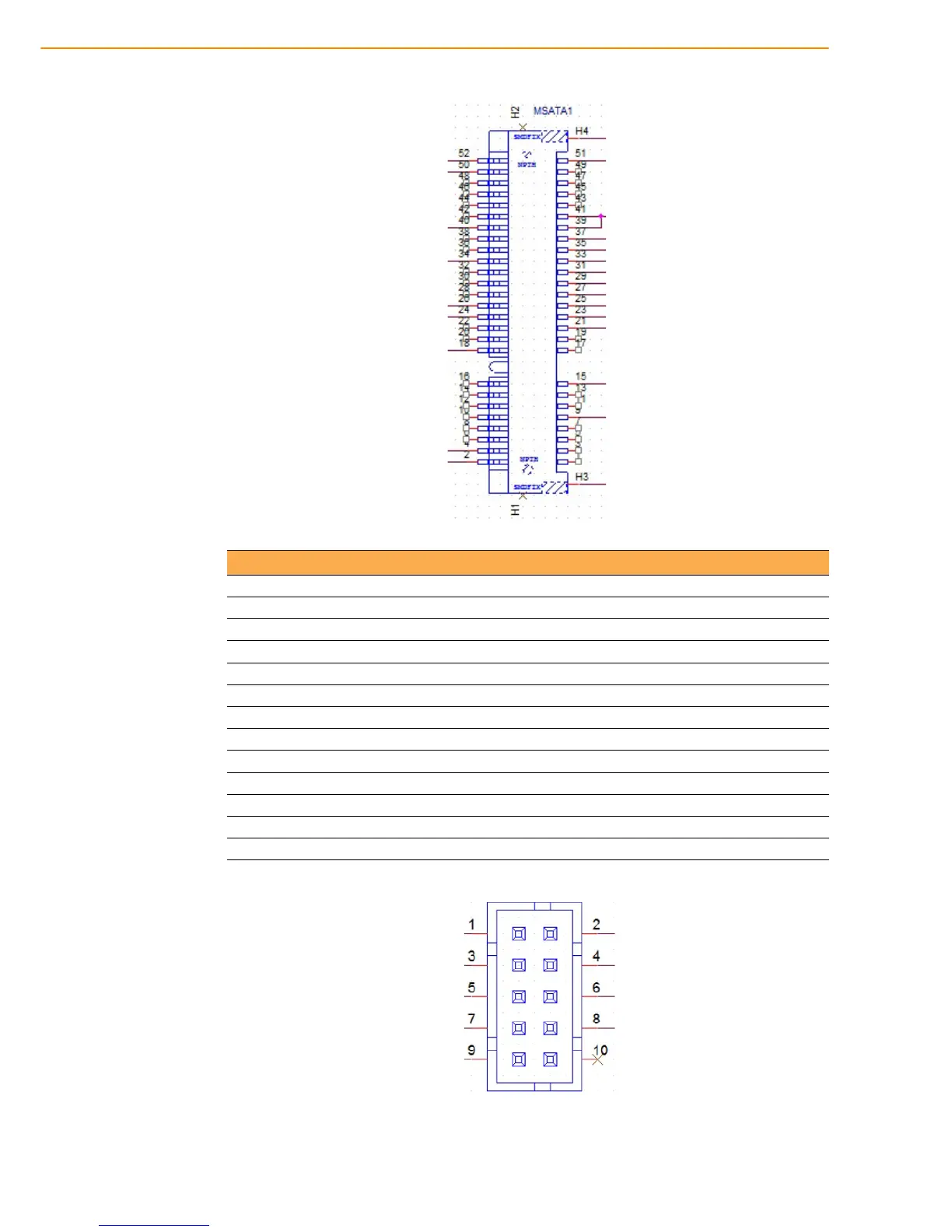

Table A.11: CN16: COM2
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 422/485 TX-
2 422/485 TX+
3 422 RX+
4 422 RX-
5 GND
6 DSR#
7 RTS#
8 CTS#
9 RI#
