ADVANTEST TQ8210 User Manual

BRECTIOfit AND CALIBRATION
7. INSPECTION AND CALIBRATION
No
Shield the sensor from
light, and press ZERO
key to cancel dark
current.
Feed an optical beam
of the correct
wavelength (*1) for
the sensor that is
connected. The level
is -20 dBm. Set the
wavelength of TQ8210
to reference
wavelength.
Dagi-6210
.‹.:&cate -20 den
1,0 25 dB?
No
Yes
Is cor ect
evel in icated
senso
is connected?
No
Adjust BLC-013338 R19
as that the error is
5% (±0.25 dB).
*1 T082016, 82017: 850 nm
TQ82015: 1300 nm
See the error
code list.
e

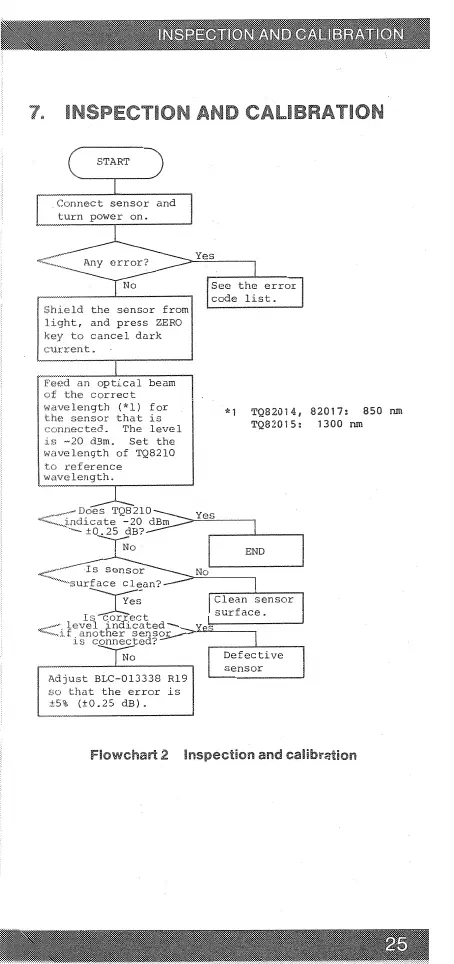

Flowchart 2 inspection and calibration
25
