MEASUREMENT PROCEDURE
2. MEASUREMENT PROCEDURE
2.1 Measurement Flowchart
This section explains the measurement procedure ac-
cording to the following flowchart. Panel descriptions
are provided on page 10.
2.2
2.3
2.4
2.5
2.6
2.7
Power preparation
Sensor connection
ON/OFF/DSPL LT ON
dBm/W — Unit setting
ZERO — Sensor offset adjustment
X — Wavelength setting
Reading enabled
Lit required
2.8 r AUTO/MANUAL - Range selection _ 1
2.9 r SMOOTHING -Smoothing
2.10 rMAX_ Maxim- um value hold
r-
2.11 LdBr — Relative value measurement)
2.1 2 ANALOG OUTP- UT Enabled
-r
(13)
Completion
j

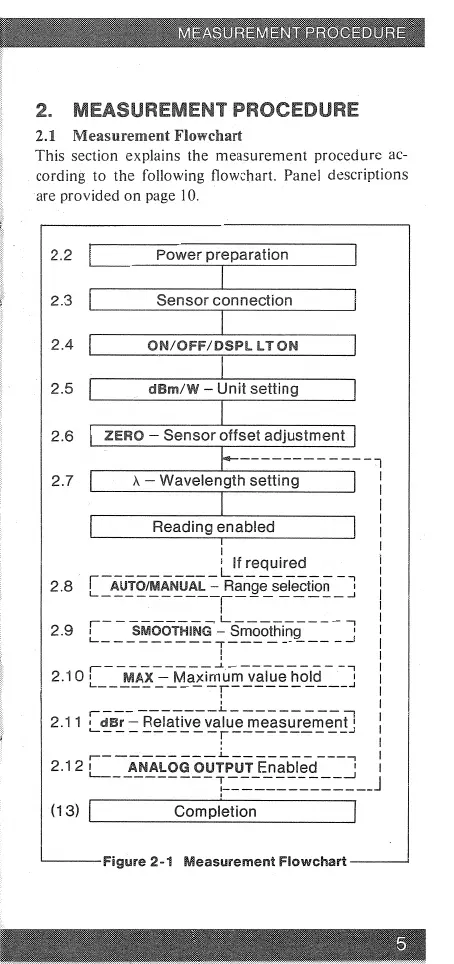

Figure 2-1 Measurement Flowchart
1
5
To Next Page
