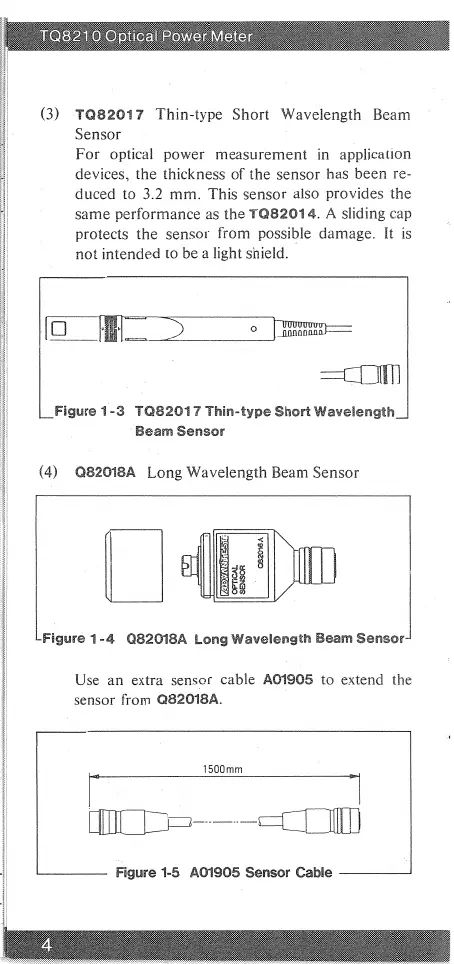

T08210 Optical Power Meter
(3) T082017 Thin-type Short Wavelength Beam
Sensor
For optical power measurement in application
devices, the thickness of the sensor has been re-
duced to 3.2 mm. This sensor also provides the
same performance as the T082014. A sliding cap
protects the sensor from possible damage. It is
not intended to be a light shield.
❑ 0 risyr.
c=111111
_Figure 1-3 T082017 Thin-type Short Wavelength_
Beam Sensor
(4) 082018A Long Wavelength Beam Sensor
-Figure 1-4 082018A Long Wavelength Beam Sensor
Use an extra sensor cable A01905 to extend the
sensor from 082018A.
1500mm
Figure 1-5 A01905 Sensor Cable
