VISLINK
Newswift 90-180 Motorised Antenna 49
7. ANTENNA MOUNTING FRAME DESIGN GUIDELINES
7.1 INTRODUCTION
The following guidelines are given to assist in the manufacture of the antenna mounting
structure on the vehicle to which the Newswift or Newswift HD antenna is fitted. The specific
design of this structure is the responsibility of the coachbuilder / system integrator.
The Newswift antenna needs a stiff stable structure to be able to meet its stated operational
wind speeds.
7.2 LOAD SUMMARY
The antenna is subject to the following static and wind induced loads:

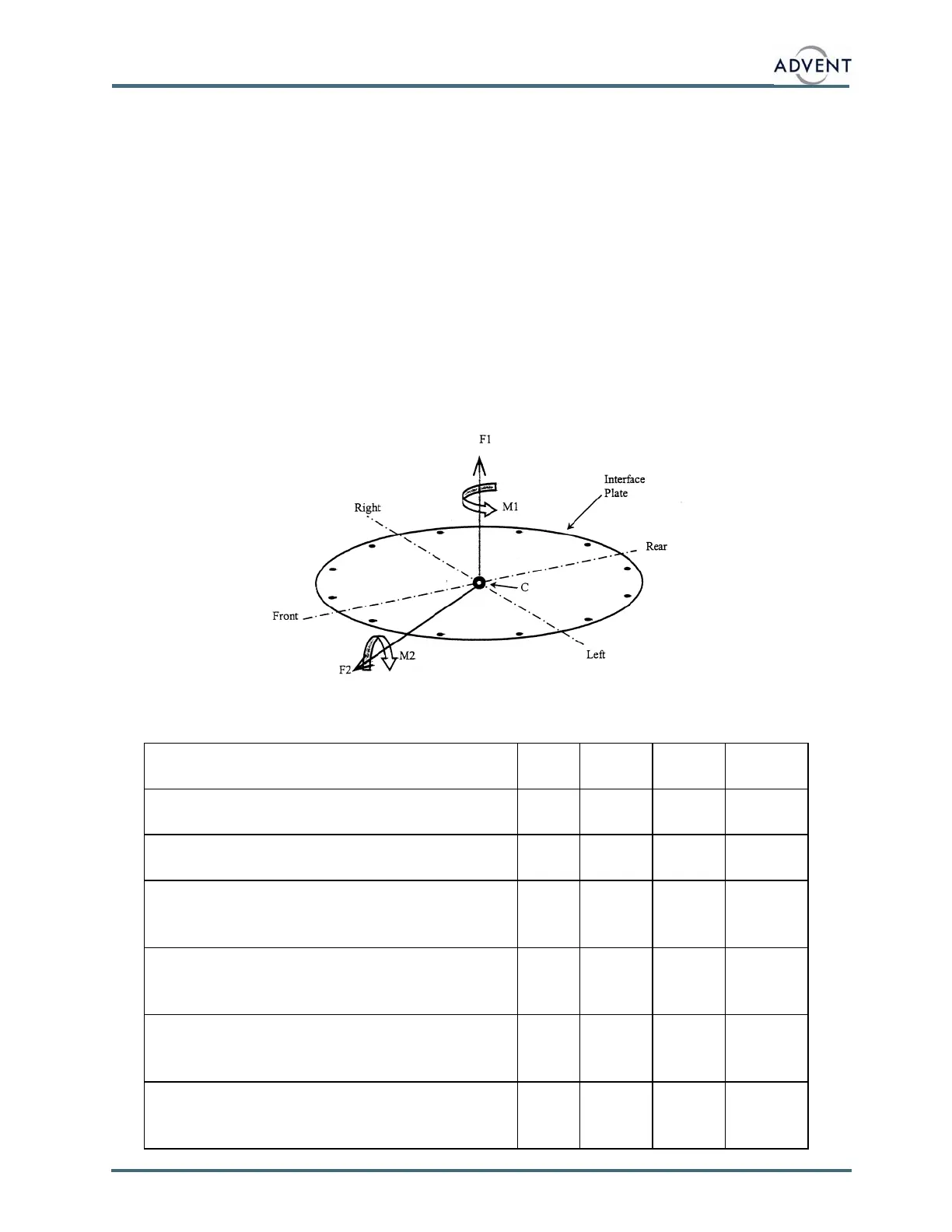

Co-ordinate system:
Antenna Reflector Diameter 90cm 120cm 150cm 180cm
Static Weights
Complete Ku band Newswift excluding transmit
RF equipment, W1 (kg)
85 90 100 115
Typical Ku band Newswift Single Thread 125W
system, W2 (kg)
102 107 117 132
Typical Ku band Newswift Fully Redundant/Phase
Combined 125W system, W3 (kg)
125 130 140 155
Complete Ku band Newswift HD excluding
transmit RF equipment, W1 (kg)
N/A N/A 142 151
