Switch-mode power supply AC2000 N1 / DC2000 N1 / AC3000 N1 / DC3000 N1 - Operating instructions
80001533 EFE en Page 12 of 41

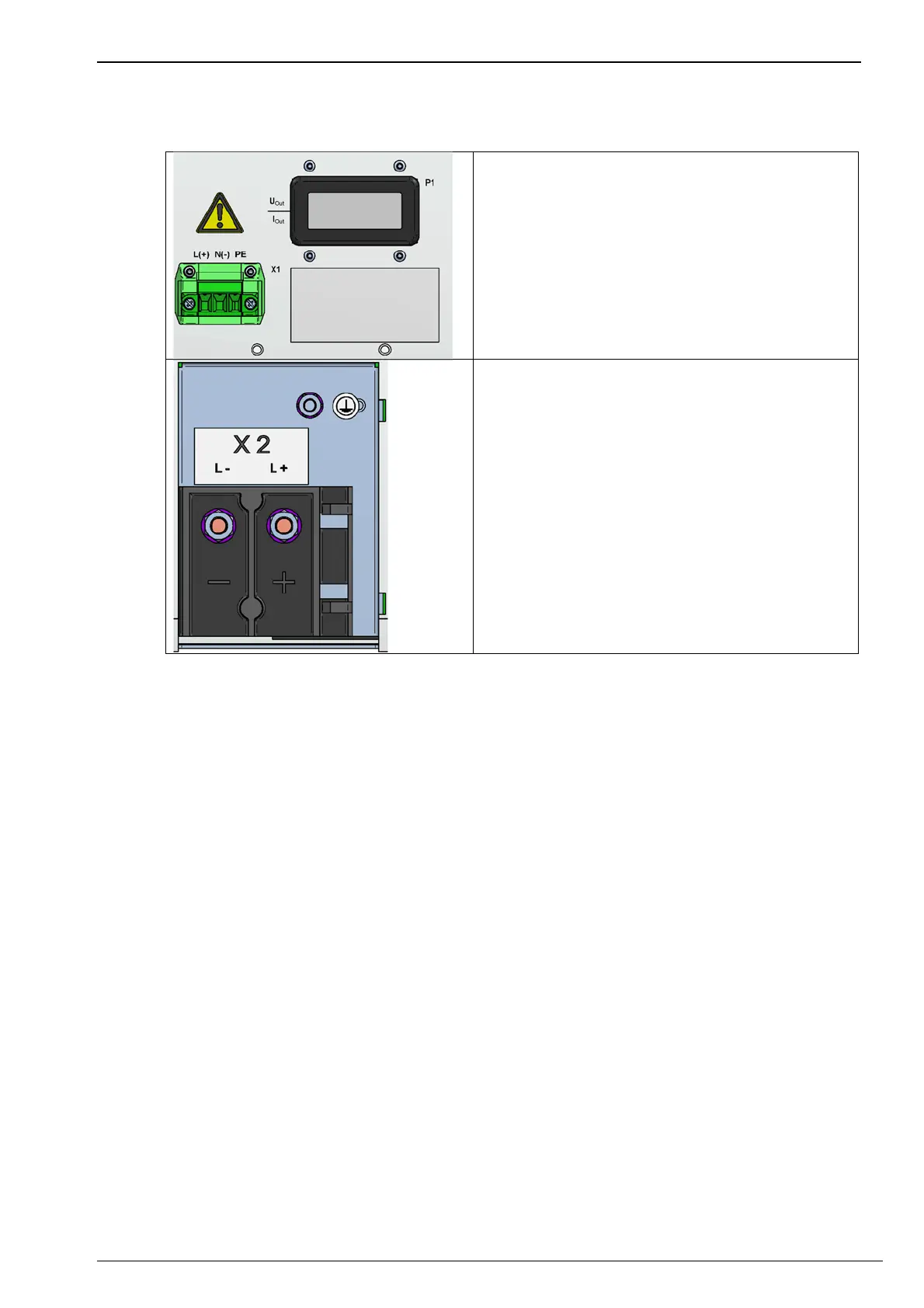

3.2 Overview of the front panel elements
Pluggable terminal X1
Mains input plug.
The polarity in brackets applies to devices in
the DC series.
(Section 5 for installation instructions)
LCD P1
Display of the current actual values of voltage
and current.
Connection bolt X2
DC output U
Out
.
Additional earthing connection point
To be used if the protective conductor
connection via X1 is not sufficient.
(Section 5 for installation instructions)
