Switch-mode power supply AC2000 N1 / DC2000 N1 / AC3000 N1 / DC3000 N1 - Operating instructions
80001533 EFE en Page 21 of 41
4.3 Derating
The derating must be maintained under all circumstances by designing the system
accordingly in order to obtain the optimum service life from the appliance.
4.3.1 Output voltage/current derating

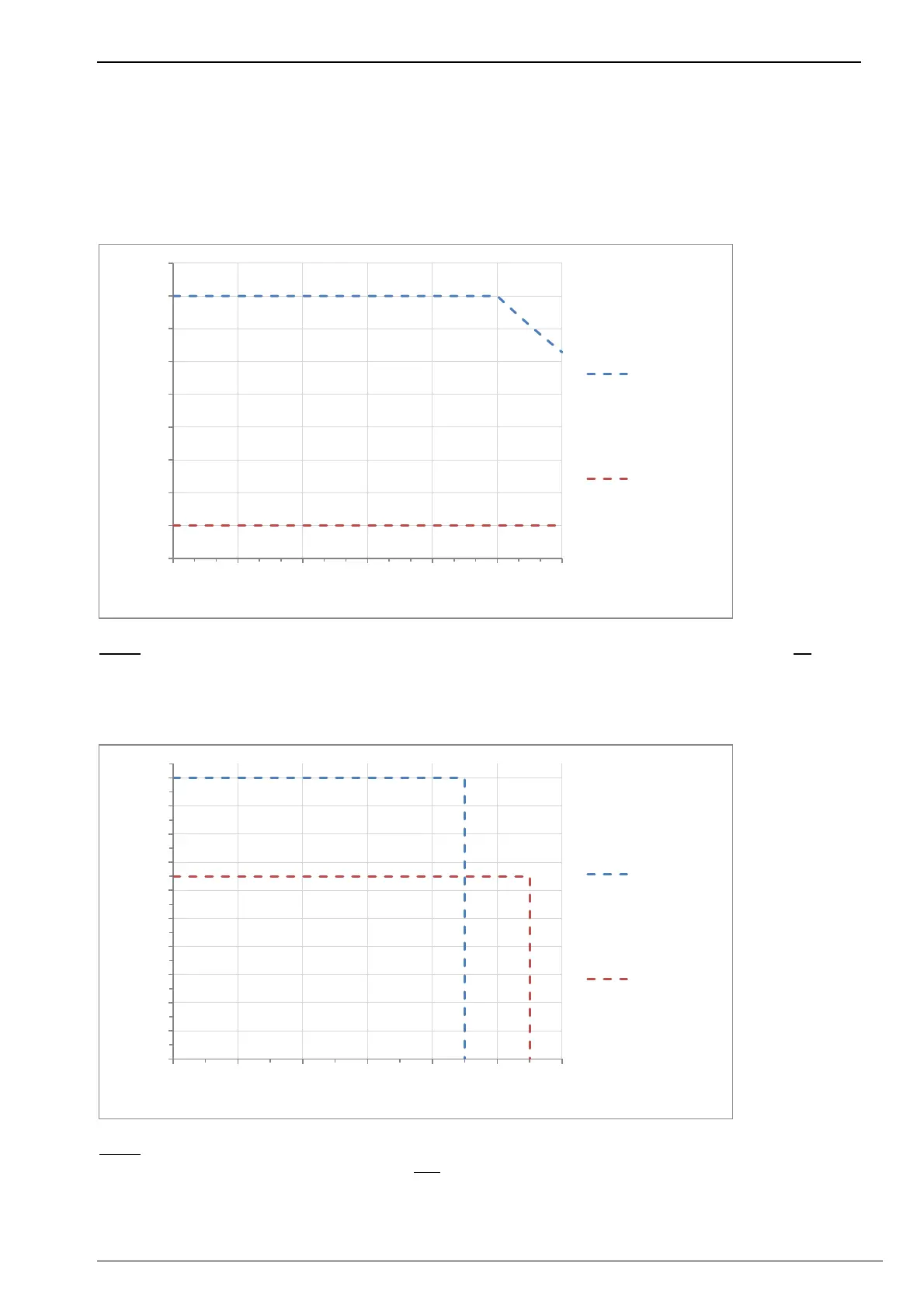

Illustration 3: Output voltage/current derating.
Note: The output current can be limited for all voltage setpoints by setting potentiometer R9. There is no
automatic derating.
4.3.2 Ambient temperature derating
Illustration 4: Ambient temperature derating.
Note: An overtemperature warning/shutdown only occurs if the device temperature is critical. If the ambient
temperature is exceeded, the power output is not automatically limited.
60
65
70
75
80
85
90
95
100
105
17 20 23 26 29 32 35
Output current [A]
Output voltage U
Out
[V]
AC3000N1,
DC3000N1
AC2000N1,
DC2000N1
0
10
20
30
40
50
60
70
80
90
100
0 102030405060
Output current [A]
Ambient temperature at the device [°C]
AC3000N1,
DC3000N1
AC2000N1,
DC2000N1
