Switch-mode power supply AC2000 N1 / DC2000 N1 / AC3000 N1 / DC3000 N1 - Operating instructions
80001533 EFE en Page 13 of 41

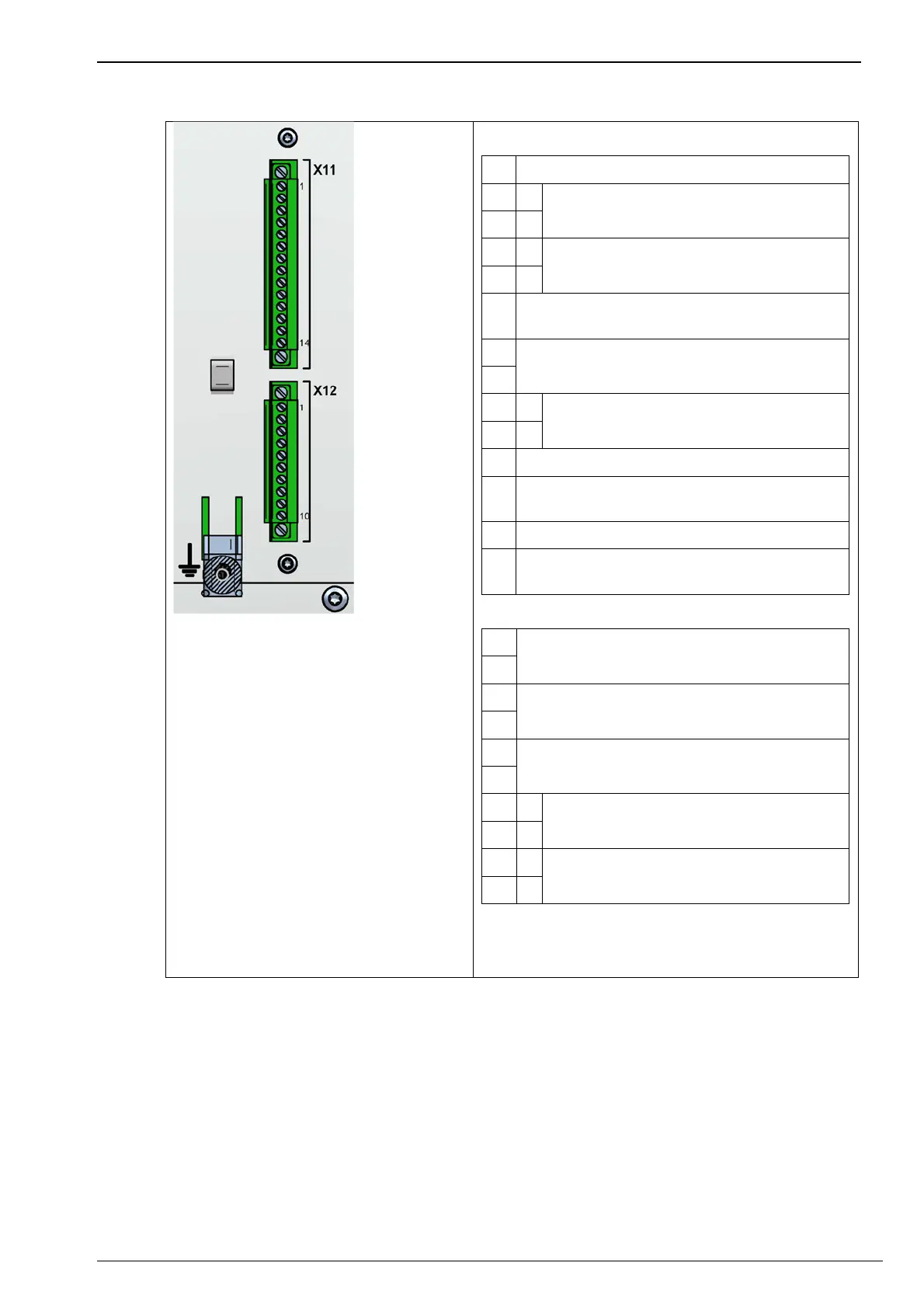

Remote signal connector X11
1 Ground external setpoint specification
2 +
External voltage setpoint specification
(section 6.3.3)
3 -
4 +
External current setpoint specification
(section 6.3.3)
5 -
6 +7.5 V internal reference voltage
(
section 6.3.3
)
7
External on/off (jumper = device on),
Delivery state with bridge
8
9+
External sensing line
10 -
11 Do not prove
12 Collective fault relay NC contact
(
12-13 = fault
)
13 Collective fault rela
y
chan
g
eover contact
14 Collective fault relay NO contact
(
13-14 = normal operation
)
Remote signal connector X12
1
Voltage setpoint switching 1
(jumper = selected)
2
3
Voltage setpoint switching 2
(Bridge = Selected)
4
5
Actual value output as 0-10 V
(bridge = 0-10 V)
6
7+
Actual value output Voltage
8-
9+
Actual value output current
10 -
Shield clamp
Use with shielded control cables.
(section 5.5.3)
