AERMEC ANL Series User Manual

1118.01. 6755441_03
ANL-ANLH 020-202
EN

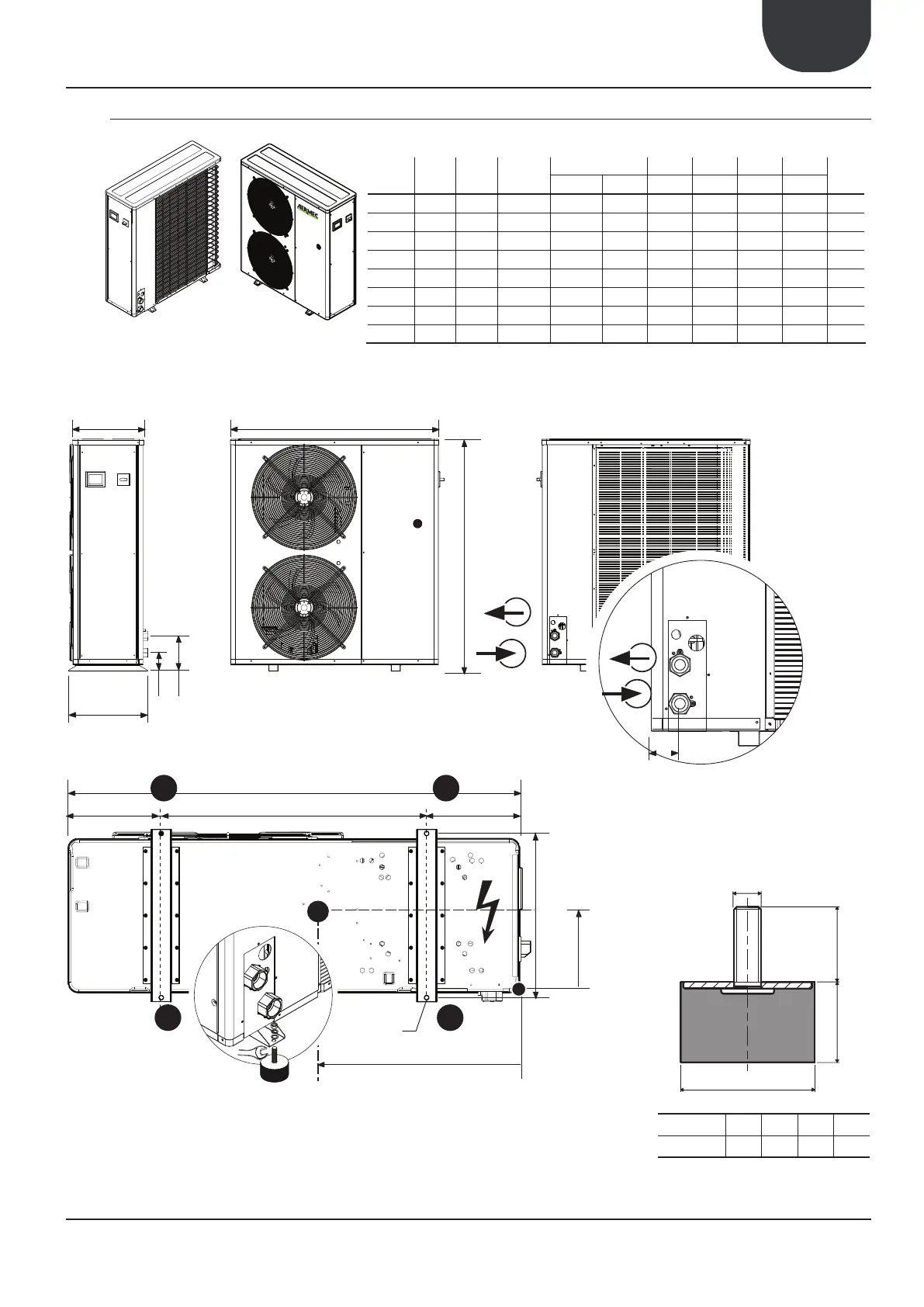

3.3. ANL 050 ÷ 090 
428
384 1124
190 100
1252
OUT 1”¼
IN1”¼
OUT 1”¼
IN1”¼
67
Ø 11
660
403
1118
229 229
Gx
Gy
A
D
CB
Mod. A B C D
VT9 40 30 23 M8
ANL MOD. VERS. WEIGHTS C. OF G. A B C D KIT
VTGy Gx % % % %
50 °/H ° 120 213 447 30,3% 29,8% 20,1% 19,8% 9
50 °/H P 127 212 436 31,0% 30,1% 19,8% 19,2% 9
70 °/H ° 120 213 447 30,3% 29,8% 20,1% 19,8% 9
70 °/H P 127 212 436 31,0% 30,1% 19,8% 19,2% 9
80 °/H ° 156 217 453 30,3% 29,8% 20,1% 19,8% 9
80 °/H P 163 216 444 31,0% 30,1% 19,8% 19,2% 9
90 °/H ° 156 217 453 29,5% 30,1% 20,0% 20,4% 9
90 °/H P 163 216 444 30,0% 30,3% 19,8% 19,9% 9
AC
B
D

AERMEC ANL Series Specifications

General

Category	Heat Pump
Series	ANL Series
Refrigerant	R410A
Type	Air-to-Water
Configuration	Monobloc
Power Supply	400V / 3Ph / 50Hz
Operating Temperature Range (Heating)	-15°C to 35°C
Energy Efficiency Ratio (EER)	2.8 - 3.1
