AERMEC ANL Series User Manual

12 18.01. 6755441_03
ANL-ANLH 020-202
EN
80 1590 80
Ø 9
40 20
750
Gx
Gy

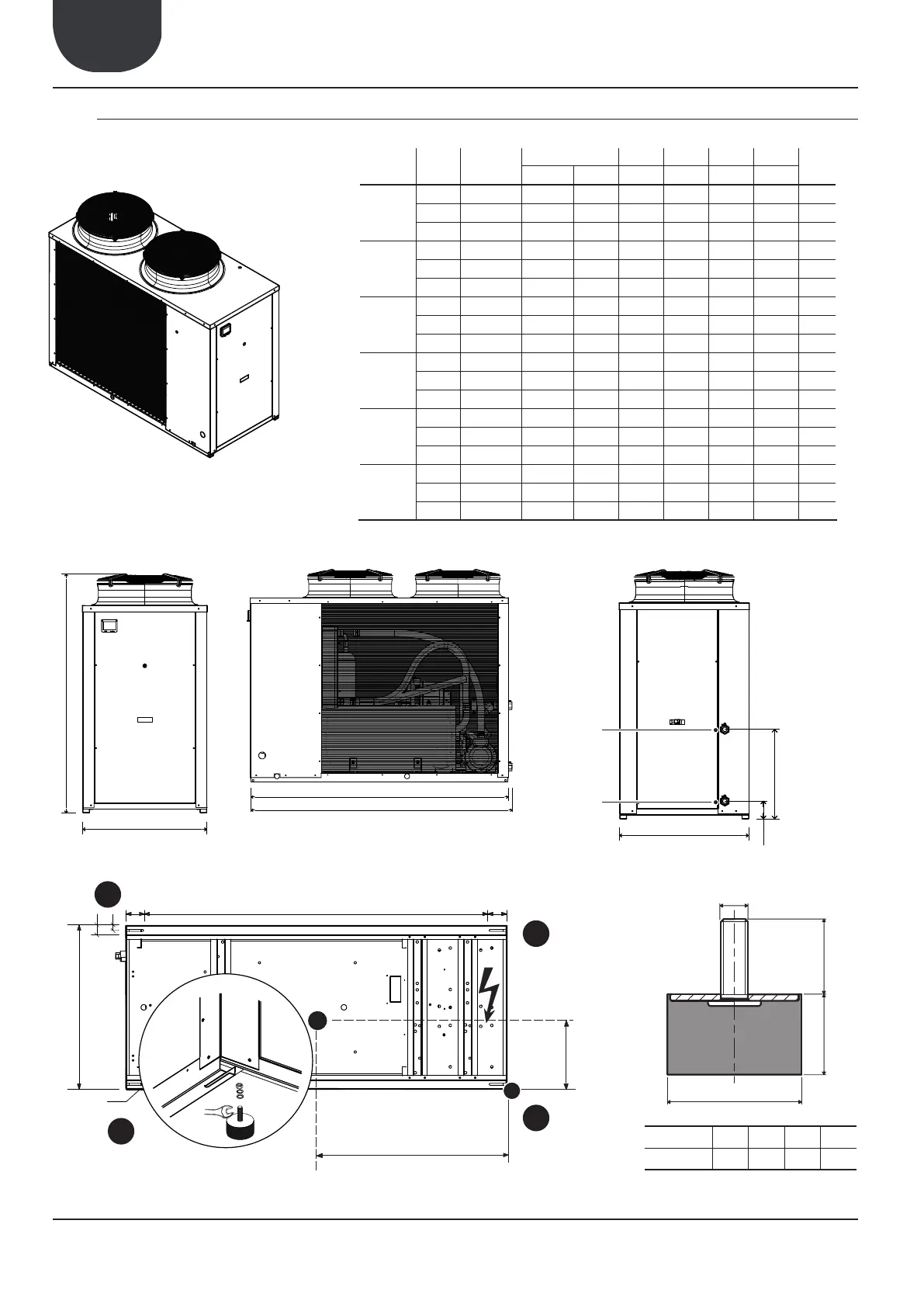

3.4. ANL 102 ÷ 202 
ANL VERS. WEIGHTS C. OF G. A B C D KIT
VTGy Gx % % % %
ANL102 ° 270 381 620 31,7% 32,8% 17,4% 18,0% 15
P 288 382 659 30,6% 31,7% 18,5% 19,1% 15
A 338 382 659 29,5% 30,4% 19,8% 20,4% 15
ANL102H ° 295 381 604 32,2% 33,3% 17,0% 17,5% 15
P 313 381 640 31,2% 32,2% 18,0% 18,6% 15
A 363 381 640 30,1% 30,9% 19,2% 19,8% 15
ANL152 ° 293 383 650 30,8% 32,1% 18,2% 18,9% 15
P 314 383 693 29,6% 30,8% 19,4% 20,2% 15
A 364 383 693 28,7% 29,7% 20,4% 21,2% 15
ANL152H ° 322 382 630 31,4% 32,6% 17,7% 18,3% 15
P 343 382 671 30,3% 31,4% 18,8% 19,5% 15
A 393 382 671 29,3% 30,3% 19,9% 20,5% 15
ANL 202 ° 329 383 600 32,1% 33,6% 16,8% 17,5% 15
P 350 383 641 31,0% 32,4% 17,9% 18,7% 15
A 400 383 641 30,0% 31,2% 19,1% 19,8% 15
ANL 202H ° 358 383 586 32,6% 33,9% 16,4% 17,1% 15
P 379 383 626 31,5% 32,8% 17,5% 18,2% 15
A 429 383 626 30,5% 31,6% 18,6% 19,3% 15
A
D
CB
Mod. A B C D
VT15 50 30 28,5 M10
A
C
B
D
1450
750
1750
1754
750
117
518
IN
ø 1” ¼
OUT
ø 1” ¼

