AERMEC ANL Series User Manual

918.01. 6755441_03
ANL-ANLH 020-202
EN

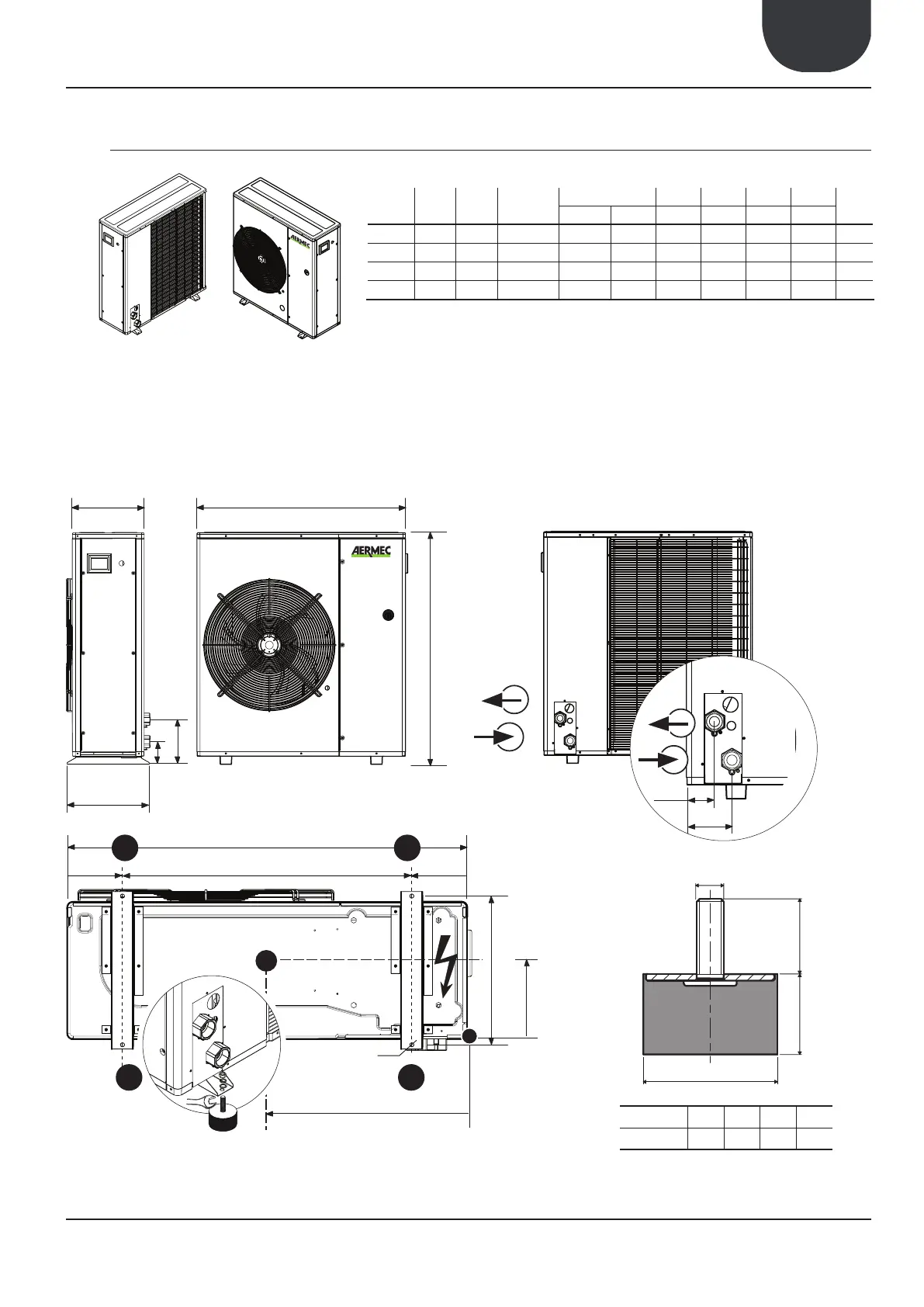

3. DIMENSIONS
3.1. ANL 020 ÷ 025 
868
194
97
354
310
900
69
113
IN 1”¼
OUT 1”¼
OUT 1”¼
IN1”¼
650
330
Gy
Ø 9
895
122,50 122,50
Gx
A
D
CB
Mod. A B C D
VT9 40 30 23 M8
ANL MOD. VERS. WEIGHTS C. OF G. A B C D KIT
VTGy Gx % % % %
020 °/H ° 75 174 325 32,1% 31,8% 18,2% 18,0% 9
020 °/H P 77 177 326 31,6% 32,2% 17,9% 18,3% 9
025 °/H ° 75 174 325 32,1% 31,8% 18,2% 18,0% 9
025 °/H P 77 177 326 31,6% 32,2% 17,9% 18,3% 9
AC
B
D
