ACCESSORIES
L
245
A
216
200
40
14
216
8
216
245
A
B
L
216
200
40
14
8
8
8

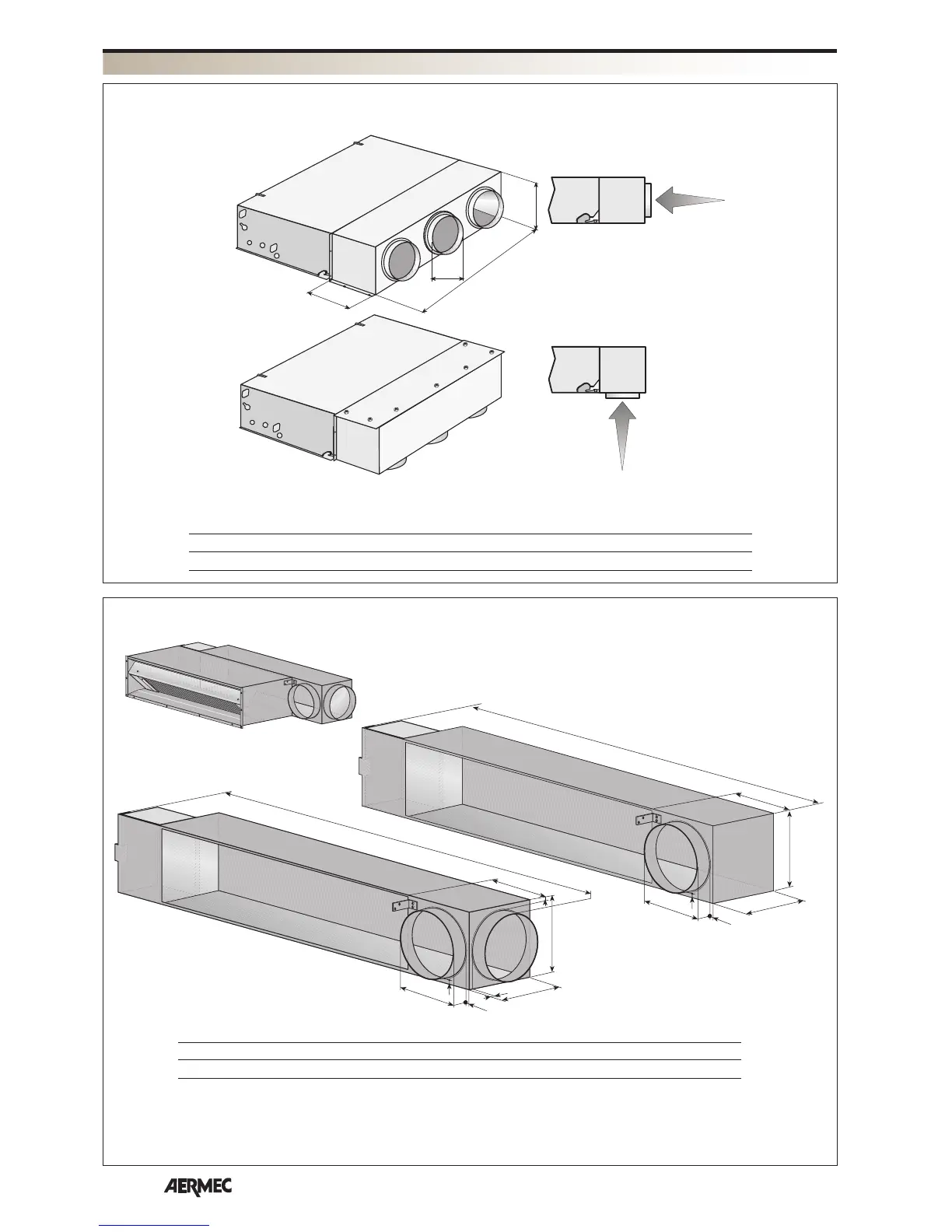

PA-F FRONT INTAKE PLENUM
Mod. PA 17 F PA 22 F PA 32 F PA 42 F PA 62 F
L [mm] 658 768 1039 1259 1381
No. of intake blocks 1 (A) 1 (A) 2 (A+B*) 2 (A+B*) 2 (A+B)
B* = Closed intake mouth, to use it, remove the cut-out panel,in the plenum PA 42F used in combination with FCX
50/54 P - PO, the cut-out panel must be removed and the two intake mouths used.
216
A
215
200
PA INTAKE PLENUM
Mod. PA 17 PA 22 PA 32 PA 42 PA 62
A [mm] 390 500 731 951 1072
No. of intake blocks 1 2 2 3 4
