AERMEC FCX User Manual

47
English

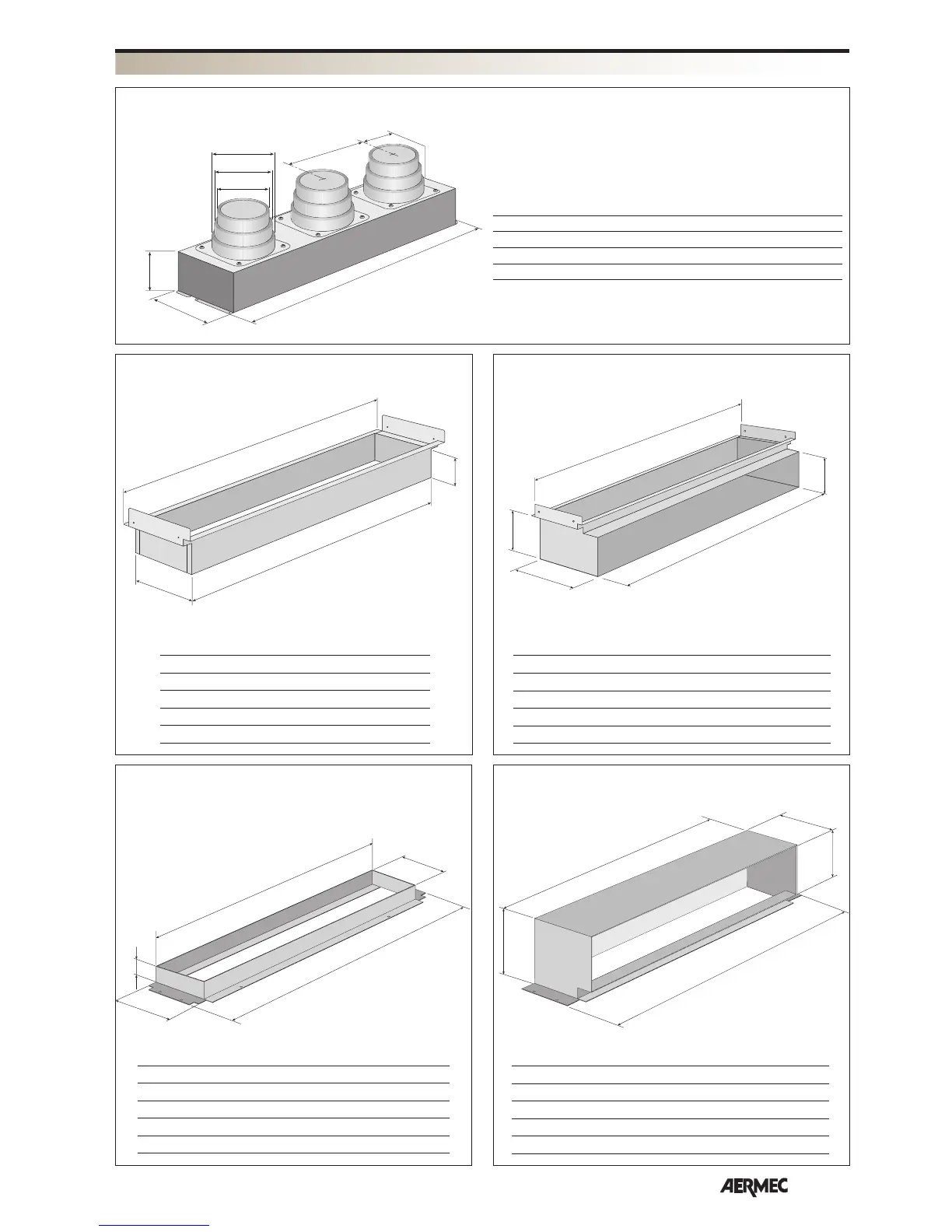

ACCESSORIES
140
210
A
200
180
150
B
C
PM 42
PM DELIVERY PLENUM
DIMENSIONS [mm]
Mod. PM 22 PM 32 PM 42 PM 62
A [mm] 522 753 973 1094
B [mm] 250 370 320 270
C [mm] 136 191 166 142
No. delivery outlet blocks 2 2 3 4
B
A
C
C
B
A
C
A
B
RD STRAIGHT DELIVERED CONNECTION
A
C
B
DIMENSIONS [mm]
Mod. A B C D E
RD 17 345 132 60 412 149
RD 22 455 132 60 522 149
RD 32 686 132 60 753 149
RD 42 906 132 60 973 149
RD 62 1027 132 60 1094 149
DIMENSIONS [mm]
Mod. A B C D E
RP 17 345 156 412 132 161
RP 22 455 156 522 132 161
RP 32 686 156 753 132 161
RP 42 906 156 973 132 161
RP 62 1027 156 1094 132 161
RP 90° DELIVERED CONNECTION
RDA STRAIGHT INTAKE CONNECTION
DIMENSIONS [mm]
Mod. A B C D
RDA 17 345 180 60 389
RDA 22 455 180 60 499
RDA 32 686 180 60 730
RDA 42 906 180 60 950
RDA 62 1027 180 60 1071
DIMENSIONS [mm]
Mod. A B C D E
RPA 17 345 150 389 132 226
RPA 22 455 150 499 132 226
RPA 32 686 150 730 132 226
RPA 42 906 150 950 132 226
RPA 62 1027 150 1071 132 226
RPA 90° INTAKE CONNECTION
