Aeroflex 3500A - Page 107

Subject to Export Control, see Cover Page for details. 2-83

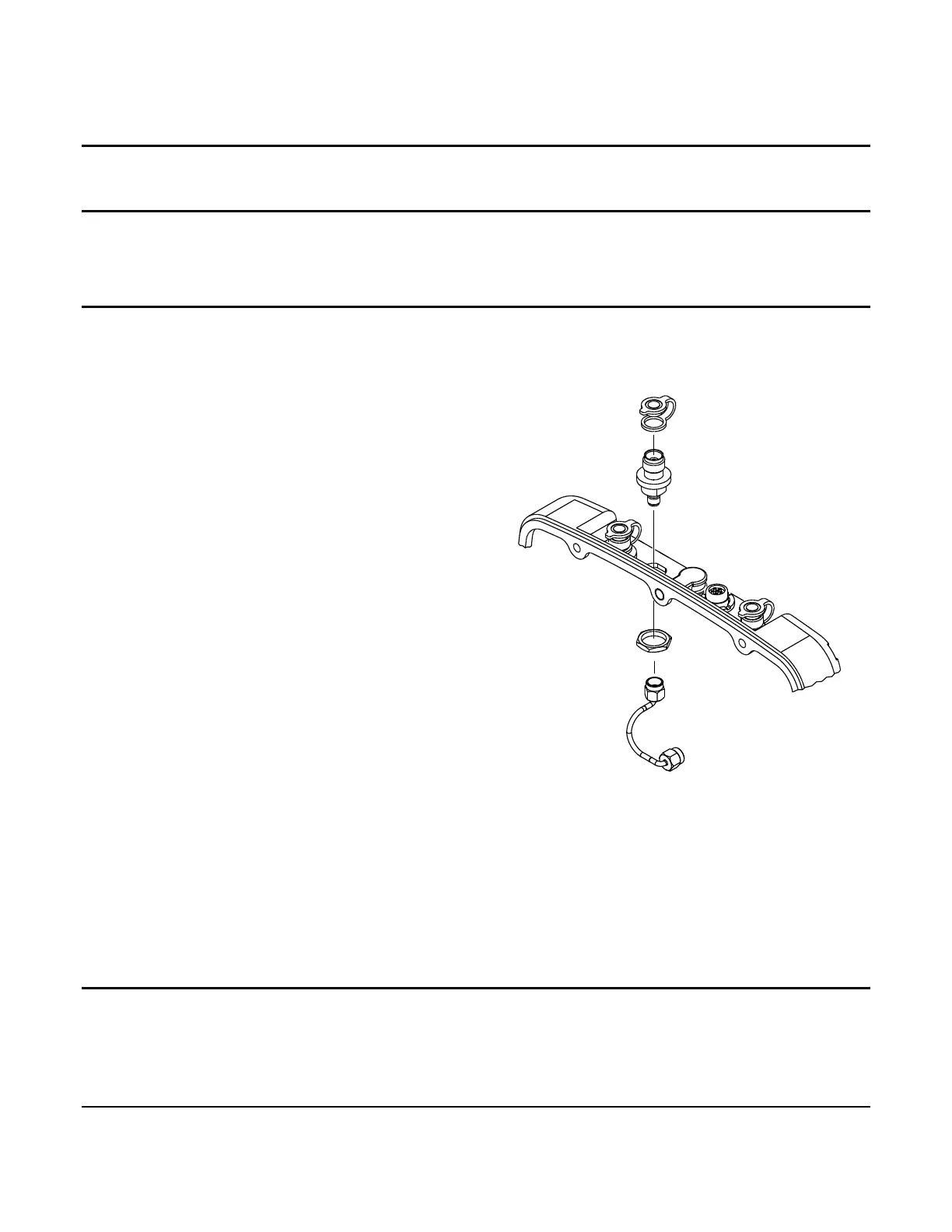

P. T/R Connector
DESCRIPTION
This procedure covers: Remove. Install.
PRELIMINARY PROCEDURES
Remove Battery (para 2-4A).
Open Case Assy (para 2-4C).
Remove RF Assy (para 2-4N).
REMOVE
1. Remove connector cap.
2. Disconnect coaxial cable.
3. Remove nut.
4. Remove T/R Connector.
INSTALL
1. Install T/R Connector.
2. Install nut (45 in/lbs.).
3. Connect coaxial cable.
4. Install connector cap.
FOLLOW-ON MAINTENANCE
Install RF Assy (para 2-4N).
Close Case Assy (para 2-4C).
Install Battery (para 2-4A).
END OF TASK
