Aeroflex 3500A - Page 109

Subject to Export Control, see Cover Page for details. 2-85
R. AUDIO Connector (3500 Only)
DESCRIPTION
This procedure covers: Remove. Install.
PRELIMINARY PROCEDURES
Remove Battery (para 2-4A).
Open Case Assy (para 2-4C).
Remove RF Assy (para 2-4N).

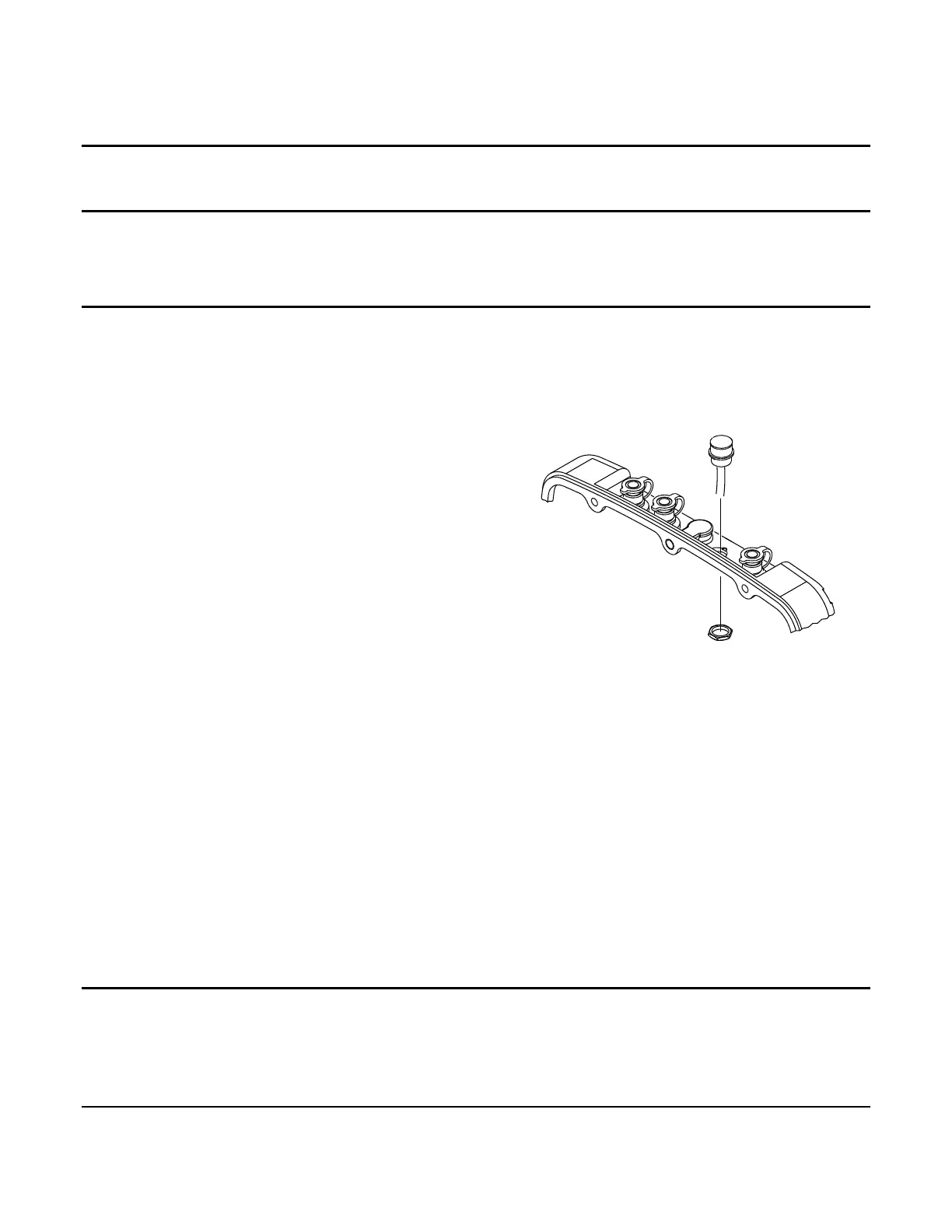

REMOVE
1. Remove connector cap.
2. Disconnect coaxial cable.
3. Remove nut.
4. Remove AUDIO Connector and wire harness.
INSTALL
1. Install AUDIO Connector and wire harness.
2. Install nut (45 in/lbs.).
3. Connect coaxial cable.
4. Install connector cap.
FOLLOW-ON MAINTENANCE
Install RF Assy (para 2-4N).
Close Case Assy (para 2-4C).
Install Battery (para 2-4A).
END OF TASK
062M-17
