APPENDIX B - CONNECTOR PIN-OUT TABLES
Subject to Export Control, see Cover Page for details. B-1
B-1. I/O CONNECTORS
3500
062-005
ANT T/R
DC IN
REMOTE
SWR
AUDIO

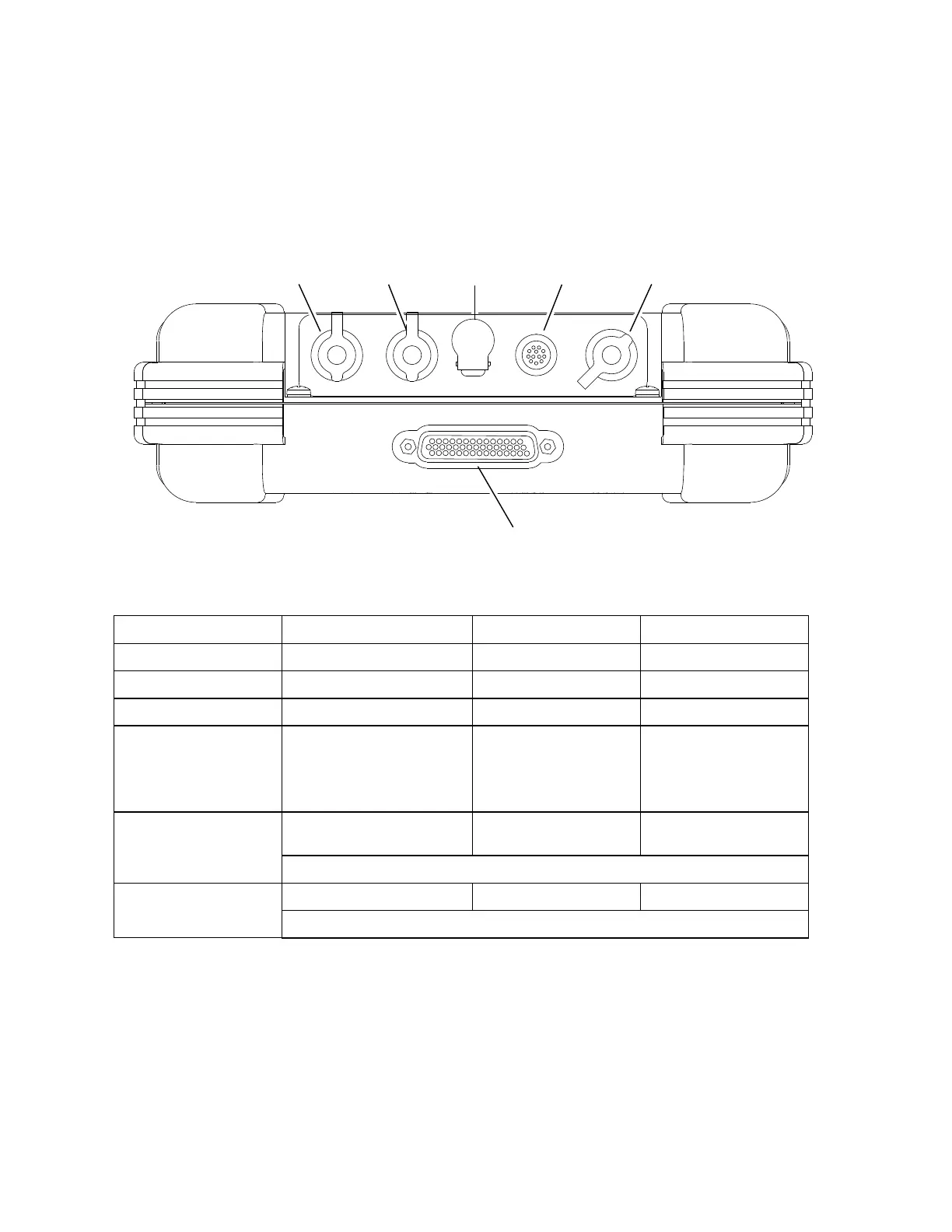

CONNECTOR TYPE SIGNAL TYPE INPUT/OUTPUT
ANT TNC Female INPUT/OUTPUT
T/R TNC Female INPUT/OUTPUT
SWR TNC Female OUTPUT
DC IN 2.5 mm CIRCULAR
(2.5 mm center,
5.5 mm outer diameter,
center positive)
INPUT
AUDIO 12-Pin CIRCULAR
Female
MIXED INPUT/OUTPUT
Refer to Table B-3 for 3500 AUDIO Connector description
REMOTE 44-Pin D-SUB Female MIXED INPUT/OUTPUT
Refer to Table B-5 for 3500 REMOTE Connector description
Table B-1. 3500 I/O Connectors
