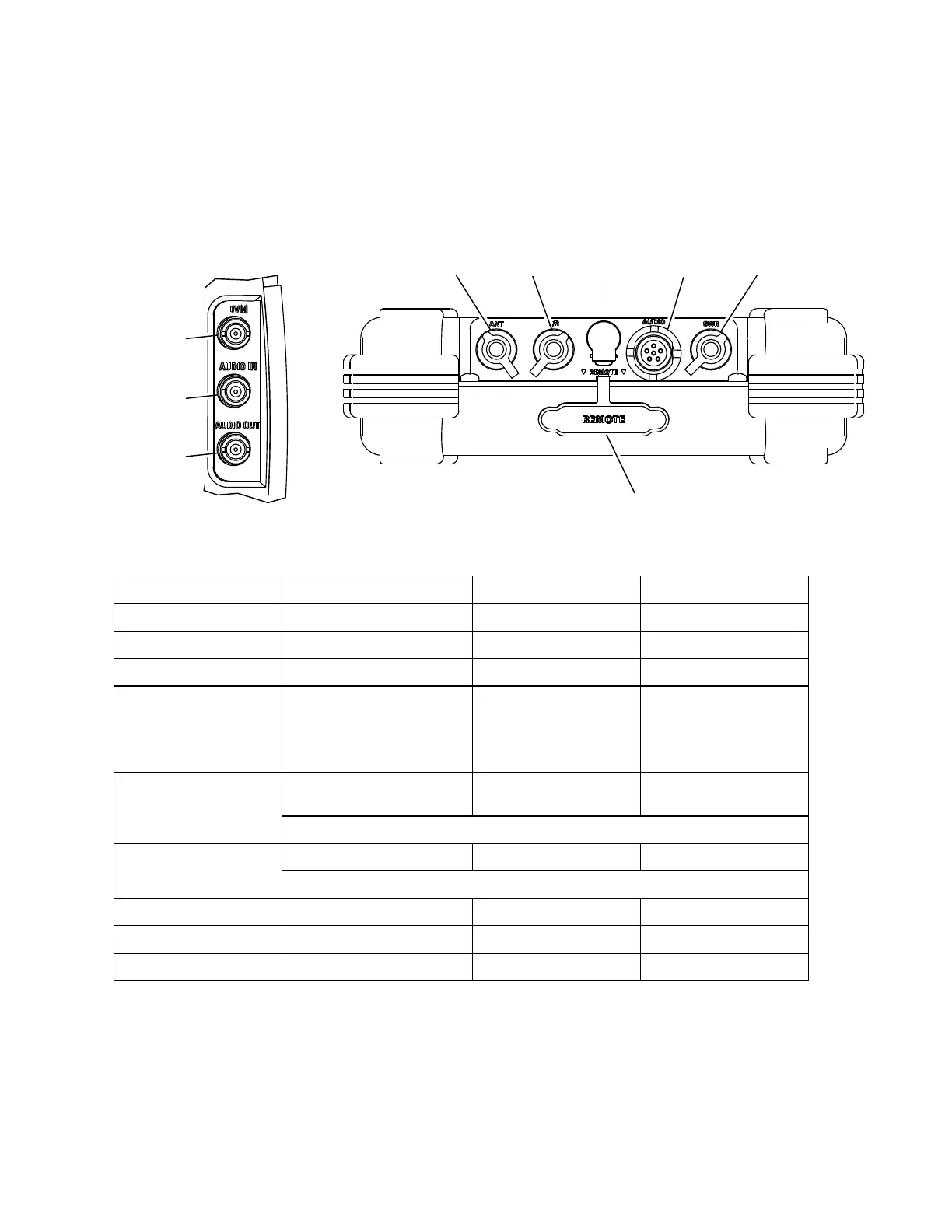

B-1. I/O CONNECTORS (cont)
3500A
062-005
DC
ANT T/R
REMOTE
AUDIO
SWR
DVM
AUDIO IN
AUDIO OUT
CONNECTOR TYPE SIGNAL TYPE INPUT/OUTPUT
ANT TNC Female INPUT/OUTPUT
T/R TNC Female INPUT/OUTPUT
SWR TNC Female OUTPUT
DC IN 2.5 mm CIRCULAR
(2.5 mm center,
5.5 mm outer diameter,
center positive)
INPUT
AUDIO 6-Pin CIRCULAR
Female
MIXED INPUT/OUTPUT
Refer to Table B-4 for 3500A AUDIO Connector description
REMOTE 44-Pin D-SUB Female MIXED INPUT/OUTPUT
Refer to Table B-5 for 3500A REMOTE Connector description
DVM BNC Female INPUT
AUDIO IN BNC Female INPUT
AUDIO OUT BNC Female OUTPUT
Table B-2. 3500A I/O Connectors
