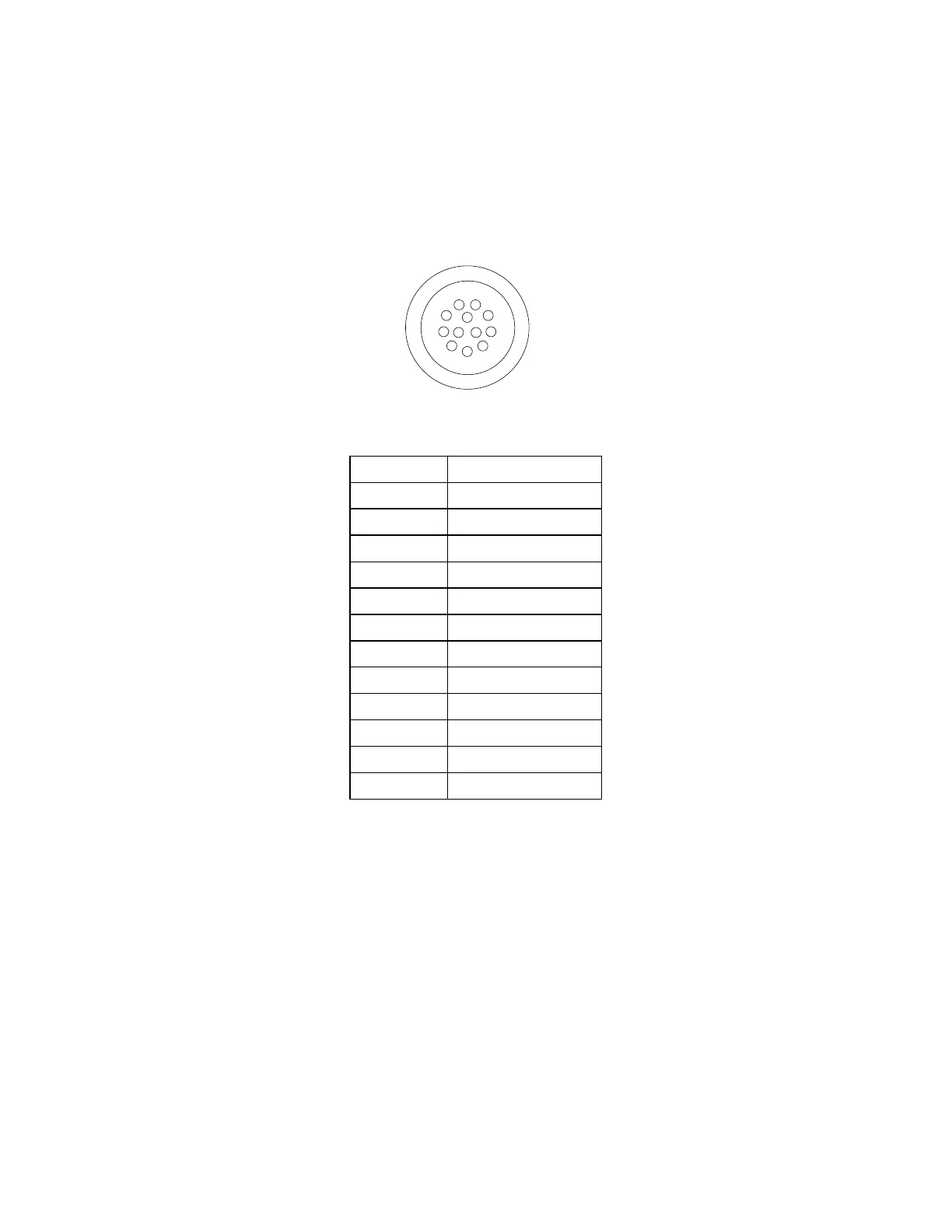

B-2. AUDIO CONNECTOR PIN-OUT TABLE
3500
1
2
3
4
5
6
7
8
9
10
11
12
062-004
PIN NO. SIGNAL NAME
1 PTT
2 AMP_SW
3 MIC
4 GND
5 AUDIO_IN
6 GND
7 DVM+
8 DVM-
9 AUDIO_OUT
10 GND
11 SPKR+
12 SPKR-
Table B-3. 3500 AUDIO Connector Pin-Out Table
