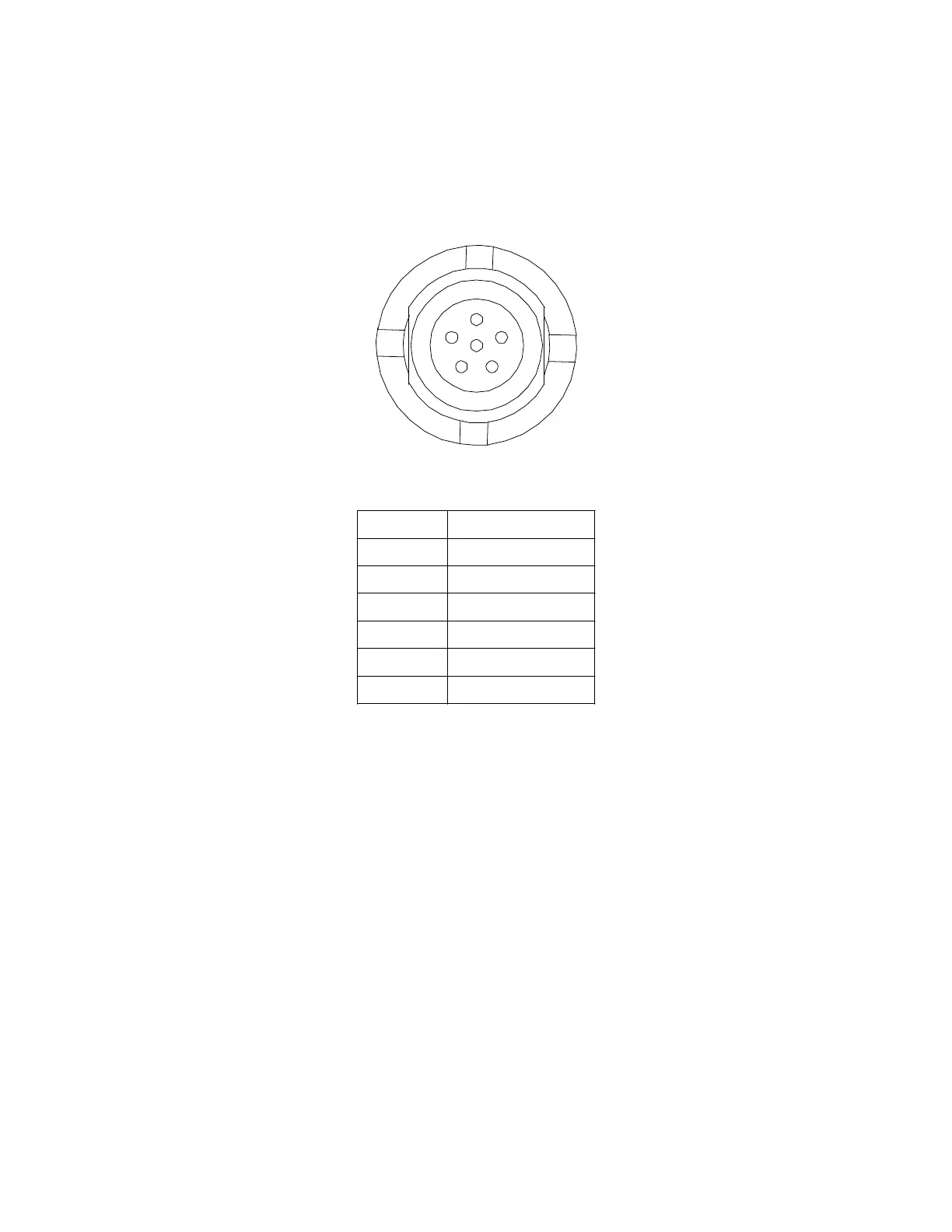

B-2. AUDIO CONNECTOR PIN-OUT TABLE (cont)
3500A
A
F
E
D
C
B
PIN NO. SIGNAL NAME
AGND
B SPEAKER+
CPTT
DMIC
E MICSEL1
F MICSEL2
Table B-4. 3500A AUDIO Connector Pin-Out Table
