G. Multi-Function PCB Assy (62A1A2A3) (3500 Only)
DESCRIPTION
This procedure covers: Remove. Install.
PRELIMINARY PROCEDURES
Remove Battery (para 2-4A).
Open Case Assy (para 2-4C).
Remove RF Digitizer PCB Assy (para 2-4F).
REMOVE

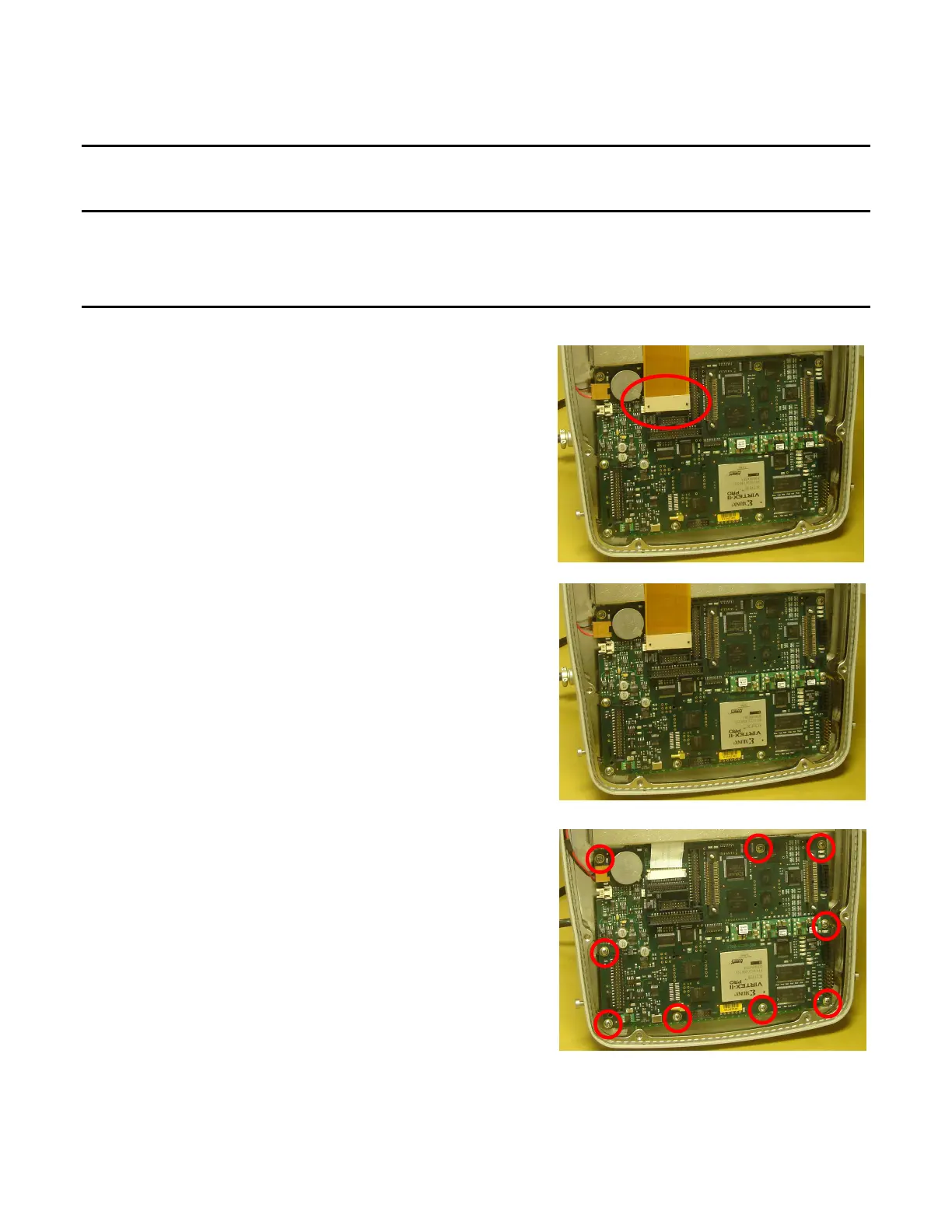

1. Remove Flex Assy.
2. Disconnect two wire cables and four ribbon
cables.
3. Remove 10 screws.
4. Remove Multi-Function PCB Assy.
To Next Page
