G. Multi-Function PCB Assy (62A1A2A3) (3500 Only) (cont)
INSTALL

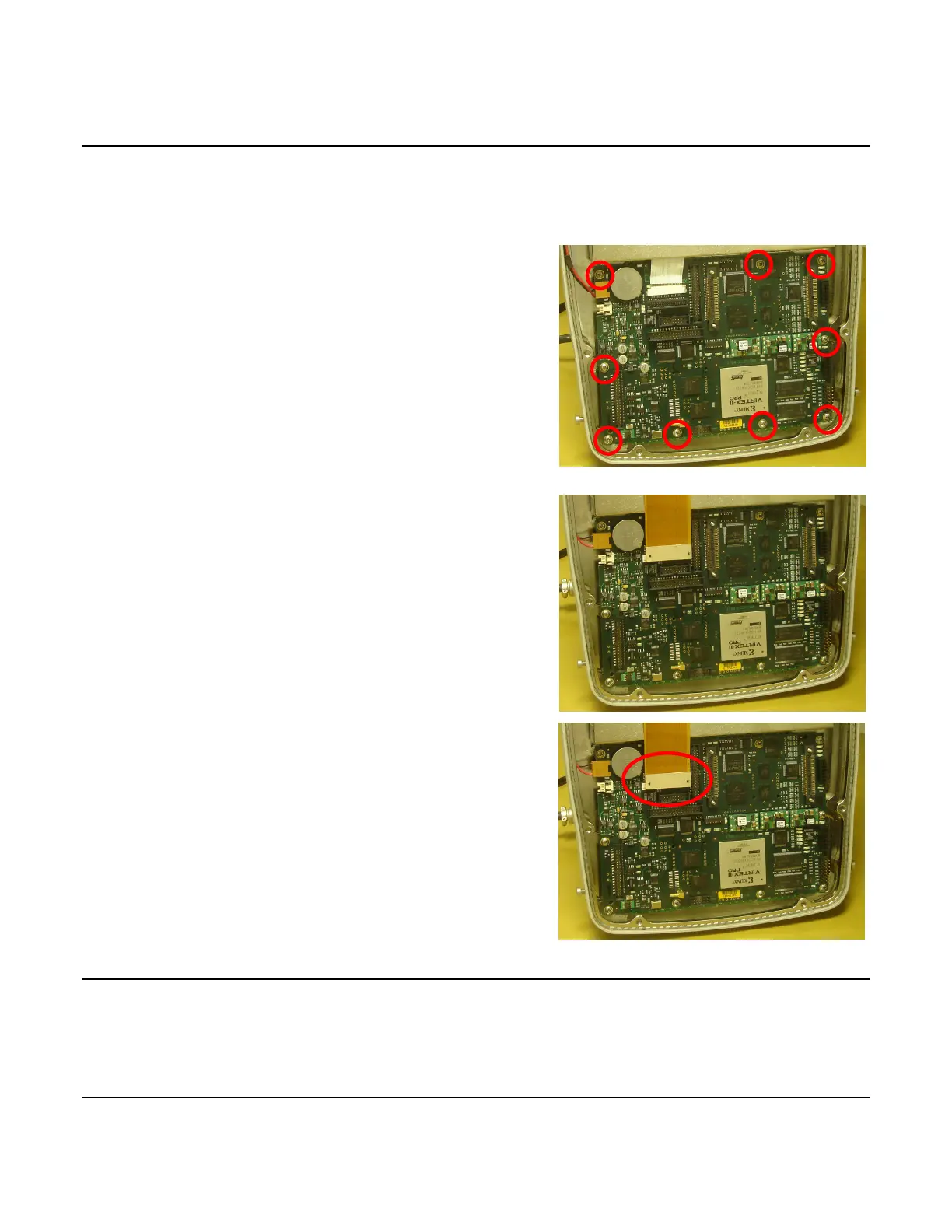

1. Install Multi-Function PCB Assy.
2. Install 10 screws (6 in/lbs.).
3. Connect two wire cables and four ribbon cables.
4. Connect Flex Assy.
FOLLOW-ON MAINTENANCE
Install RF Digitizer PCB Assy (para 2-4F).
Close Case Assy (para 2-4C).
Install Battery (para 2-4A).
END OF TASK
