H. Multi-Function PCB Assy (62A1A2A3) (3500A Only)
DESCRIPTION
This procedure covers: Remove. Install.
PRELIMINARY PROCEDURES
Remove Battery (para 2-4A).
Open Case Assy (para 2-4C).
Remove Audio I/O Assy (para 2-4M)
Remove RF Digitizer PCB Assy (para 2-4F).
REMOVE

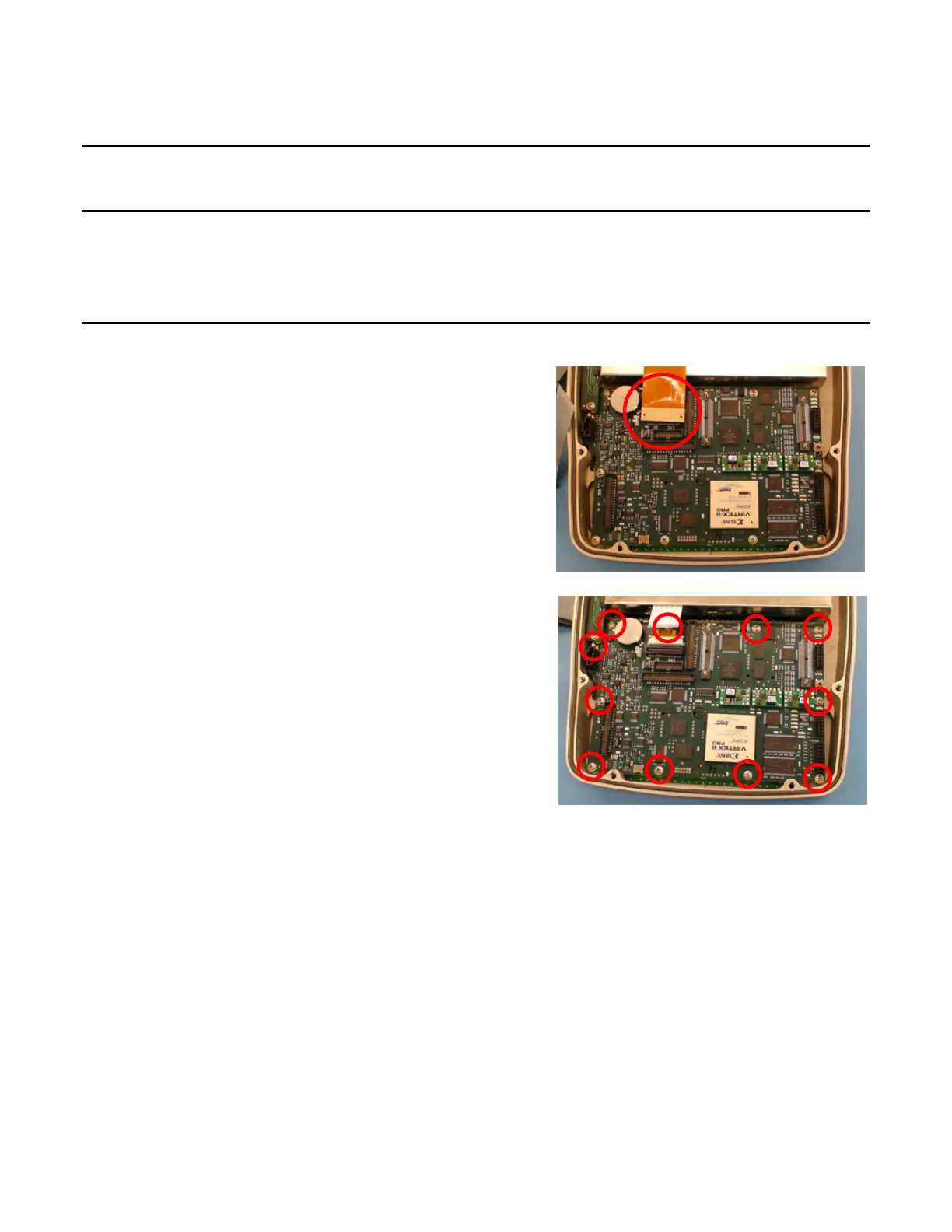

1. Disconnect ribbon cable and Flex Assembly
(62A1A2A6).
2. Remove standoff and 10 screws
3. Remove Multi-Function PCB Assy.
