Afore HNS2000TL-1 - Connection Area Overview

7 / 34

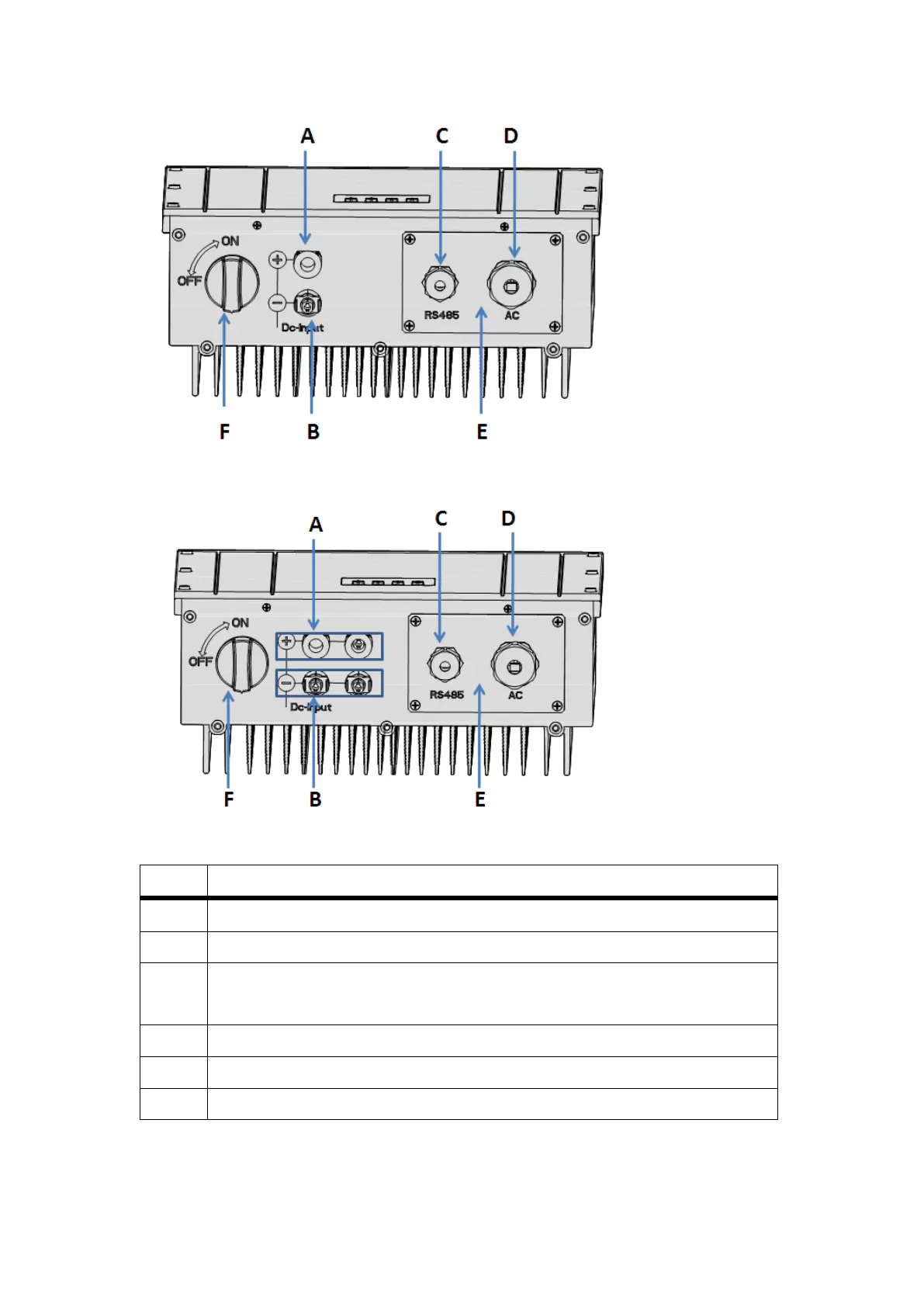

Apply to HNSxxxxTL-1 (xxxx=1000, 1500, 2000, 2500)
Apply to HNSxxxxTL-1(xxxx=3000, 3600, 4000)
Object
Description
A
DC connectors ( + ) for connecting the PV strings
B
DC connectors ( − ) for connecting the PV strings
C
Waterproof connector for the communication connection (RS485 Quick
Module)
D
Waterproof connector for the AC connection
E
Cover plate for RS485 connection and AC connection
F
Switch(optional)
