5 / 34

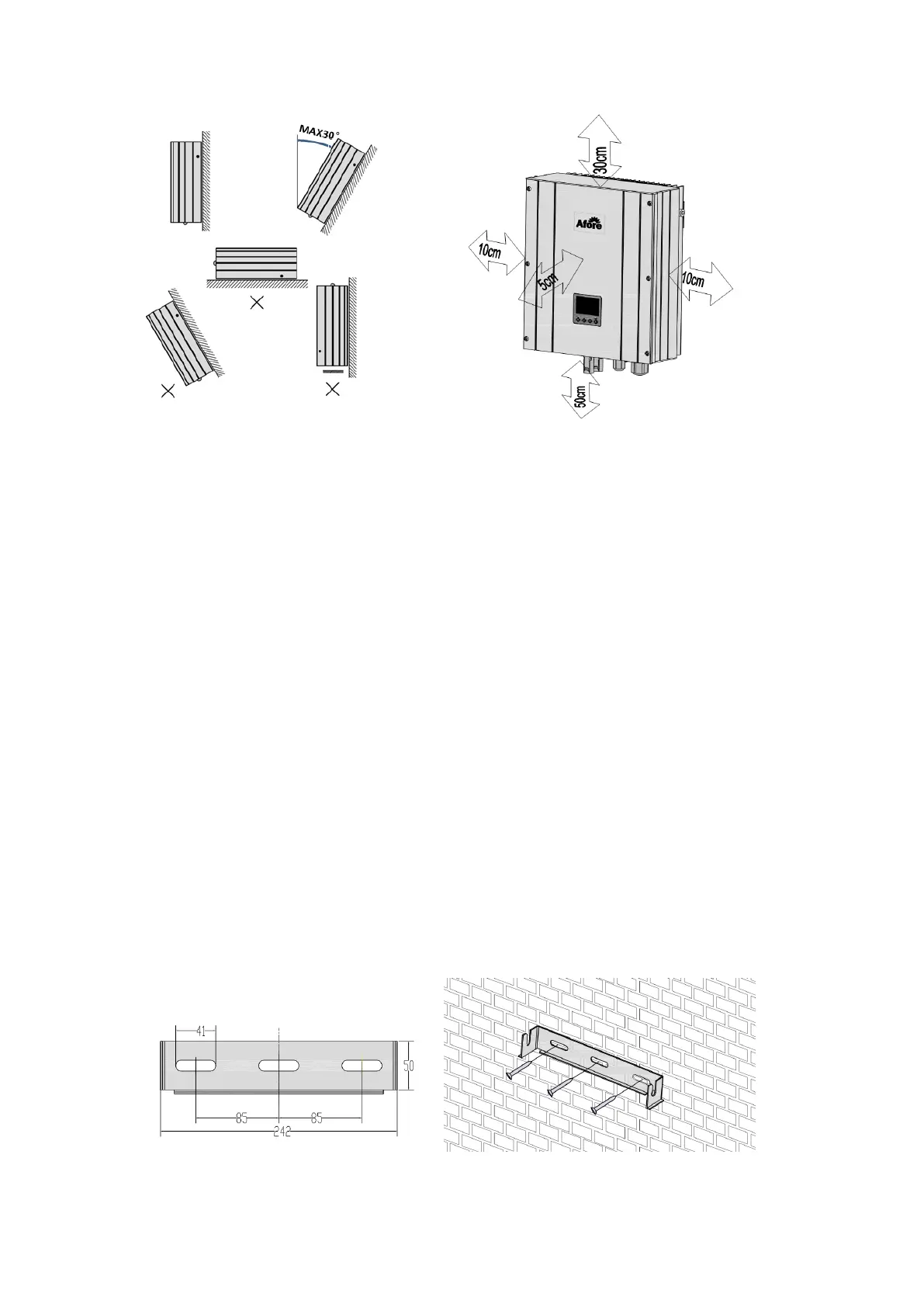

• Vertical installation or tilted backward by max. 30 degree is allowed.
• Never mount the device with a forward tilt, horizontally or even upside down
• For the convenience of checking the LCD display and possible maintenance
activities, please install the inverter at eye level.
• The ambient temperature of installation site should be between -20 °C and +55 °C
(between -4 °F and 131 °F).
• Install the inverter directly exposes to strong sunshine is not recommended, the
excess heating might lead to power reduction.
• Provide better ventilation for the inverter to ensure that the heat is dissipated
adequately.
• The site altitude of installation should be below 1000m above sea level; more than
1000m above the sea level will cause derating.
4.2 Mounting the Inverter with Wall Mounting Bracket
1. Use the wall mounting bracket as a drilling template and drill the holes for the
screws.
2. Fix the wall mounting bracket to the wall using appropriate screws (diameter min.
