6 System Diagram

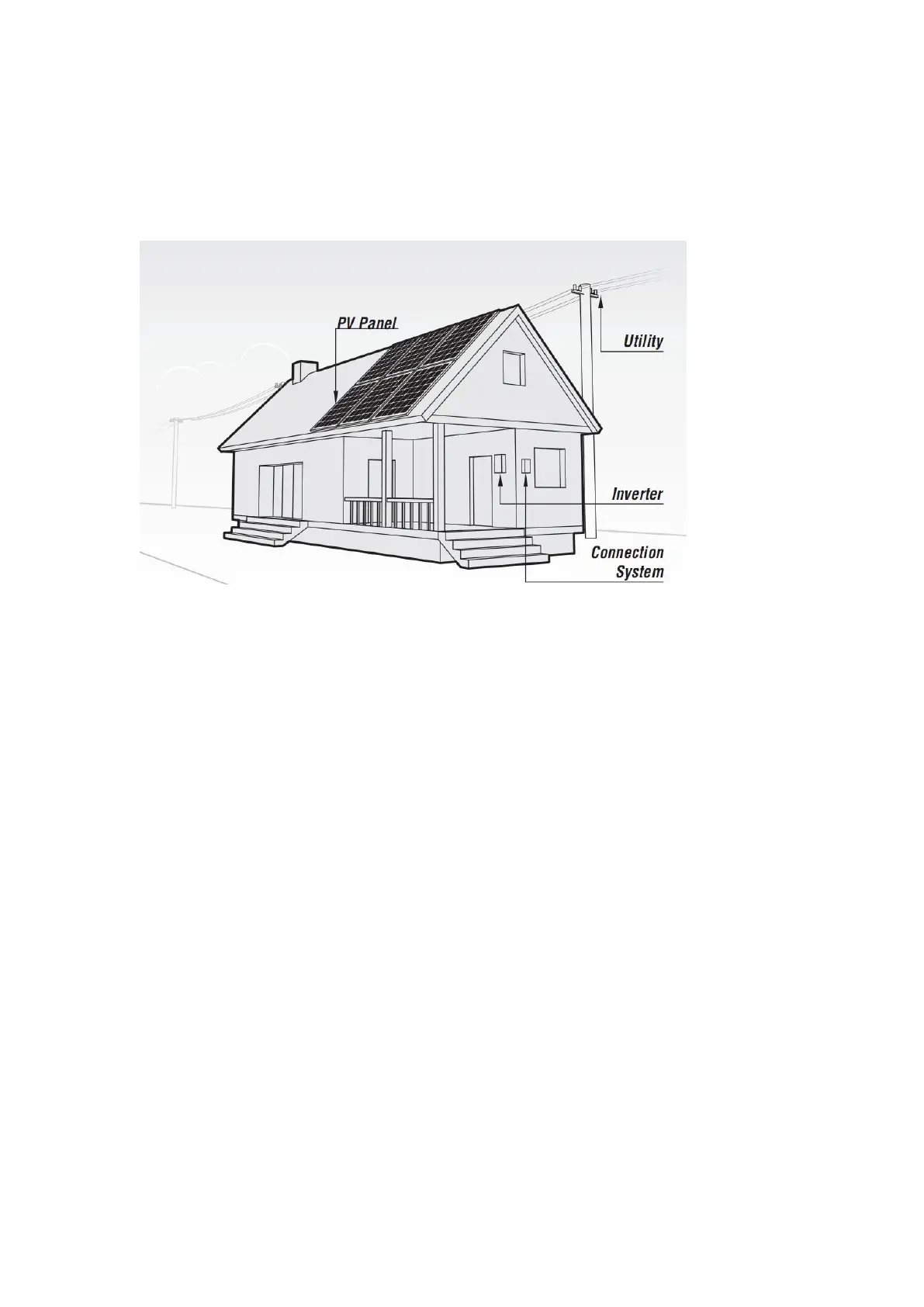

The typical connection diagram for the entire PV system is shown in the following
figure.
1. PV Panel: Provide DC power to inverter
2. Inverters: Converts DC (Direct Current) power from PV panel(s) to AC (Alternating
Current) power. Because Inverter is grid-connected it controls the current amplitude
according to the PV Panel power supply. Inverter always tries to convert the
maximum power from your PV panel(s).
3. Connection system: This “interface” between Utility and PV-Inverter may consist of
electrical breaker, fuse and connecting terminals. To comply with local safety
standards and codes, the connection system should be designed and implemented by
a qualified technician.
4. Utility: Referred to as grid in this manual, i.e. the way your electric power
company provides power to your place. Please note that Inverter can only connect to
low-voltage systems (namely, 220, 230VAC, 50Hz).
