Electrical earthing is required on this range.
Disconnect the power to the junction box before making the
electrical connection.
This range must be connected to a earthed, metallic,
permanent supply or a earthing connector should be
connected to the earth terminal or wire lead on the range.
DO NOT earth to gas pipe. Failure to follow these instructions
could result in death or serious injury.
A three-wire single phase 240-volt, 50-Hz, AC-only electrical
supply is required on a separate, 30-amperes circuit, tted
with a double pole isolator.
1. Remove cover (4 screws) to gain access to the mains
terminal.
2. Remember that an excess of cable length is required for
the possible withdrawal of the appliance.
ALWAYS DOUBLE CHECK CONNECTIONS AND ENSURE
TERMINALS ARE FULLY TIGHTENED AND THE CABLE IS
SECURED TO THE CABLE CLAMP.

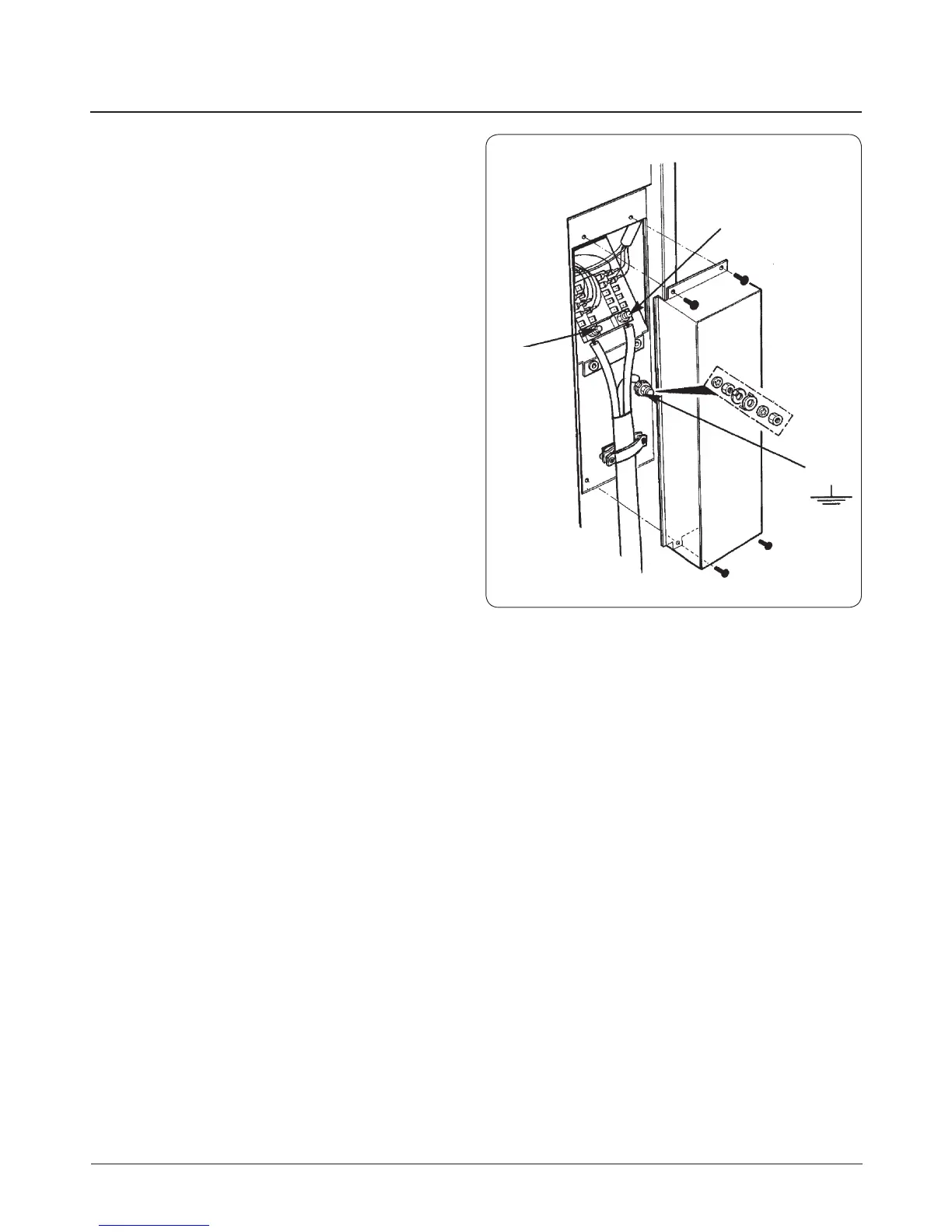

15. Electrical connection
Fig. 15.1
DESN 511852
LIVE
EARTH
NEUTRAL
To Next Page
