DESN 515698 B
REAR LEFT
FRONT
LEFT
REAR RIGHT
FRONT
RIGHT
GRILL
LOWER
OVEN
GAS HOB BURNERS
SIMMERING OVEN
LOWER
OVEN
NEON
TOP
OVEN
NEON
The GAS HOTPLATE CONTROL KNOBS have a ‘push to turn’
action and can only be rotated anti-clockwise from the OFF
position:
• Large Flame Symbol - High Setting
• Small Flame Symbol - Low Setting
The GRILL ELEMENT KNOB can be rotated in any direction:
• Clockwise both elements on.
• Anti-clockwise front elements only.
• The OVEN KNOBS can only be rotated clockwise from
the OFF position.
• The OVEN NEONS illuminate when ovens are switched
on. When the temperature required is reached the neon
will extinguish.

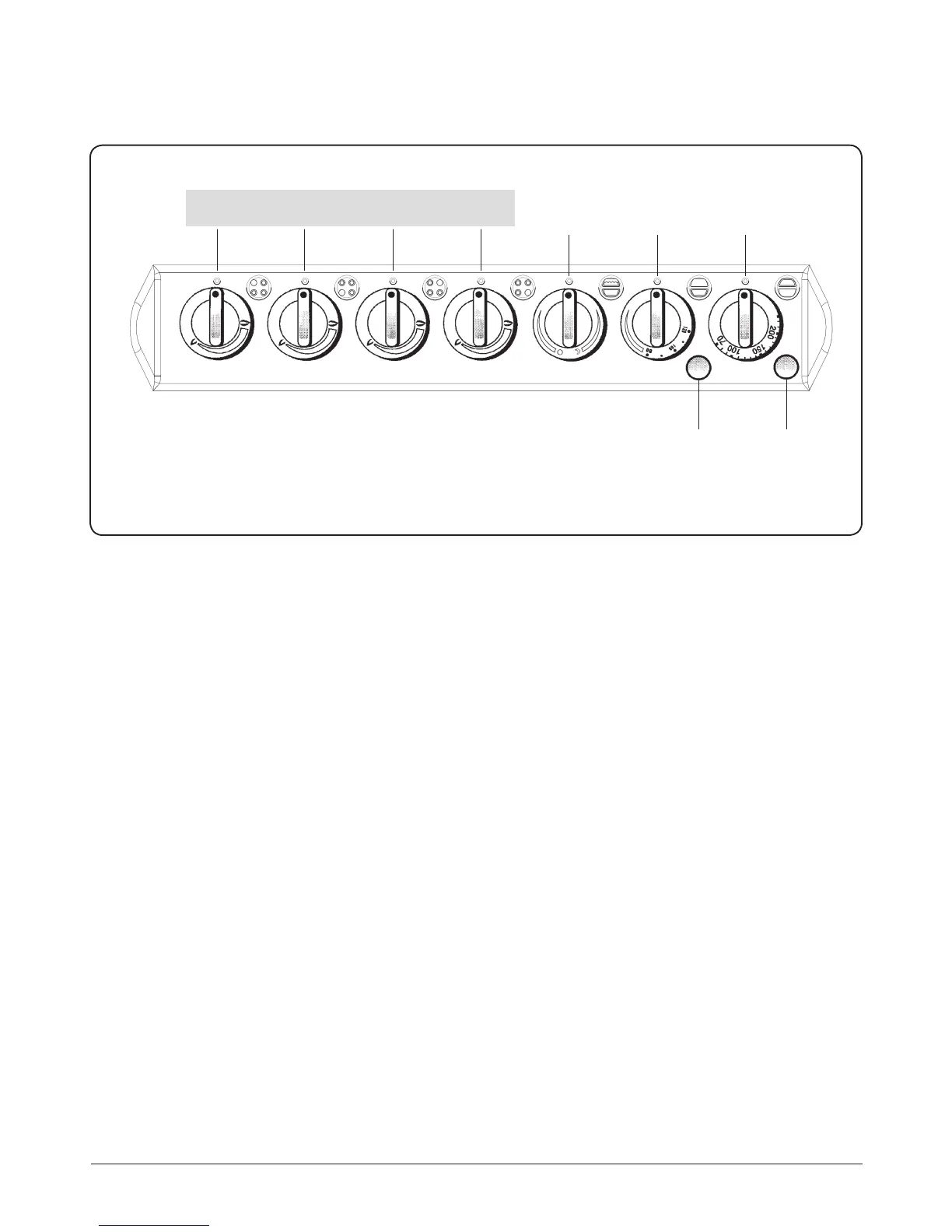

Control panel
Fig. 3.2
