AGA DC5 User Manual

36
DESN 511617
REMOVAL OF HOTPLATE
1. Repeat operations in REMOVAL OF TOP PLATE’.
2. Remove burner heads and burner caps.
3. Remove all of the screws retaining hotplate burner trims
(4 from the Wok burner, 2 each from the other three
burners). (Fig. 19.2).
4. Carefully remove burner trims and gaskets, taking care
not to damage gaskets or burner electrodes.
5. Disconnect earth wire from left hand control panel
mounting bracket.
6. Remove hotplate.
7. Re-assemble in reverse order, ensuring burner heads
and burner caps are correctly located and electrodes are
not damaged. (See Fig. 19.3 and Fig. 19.4).

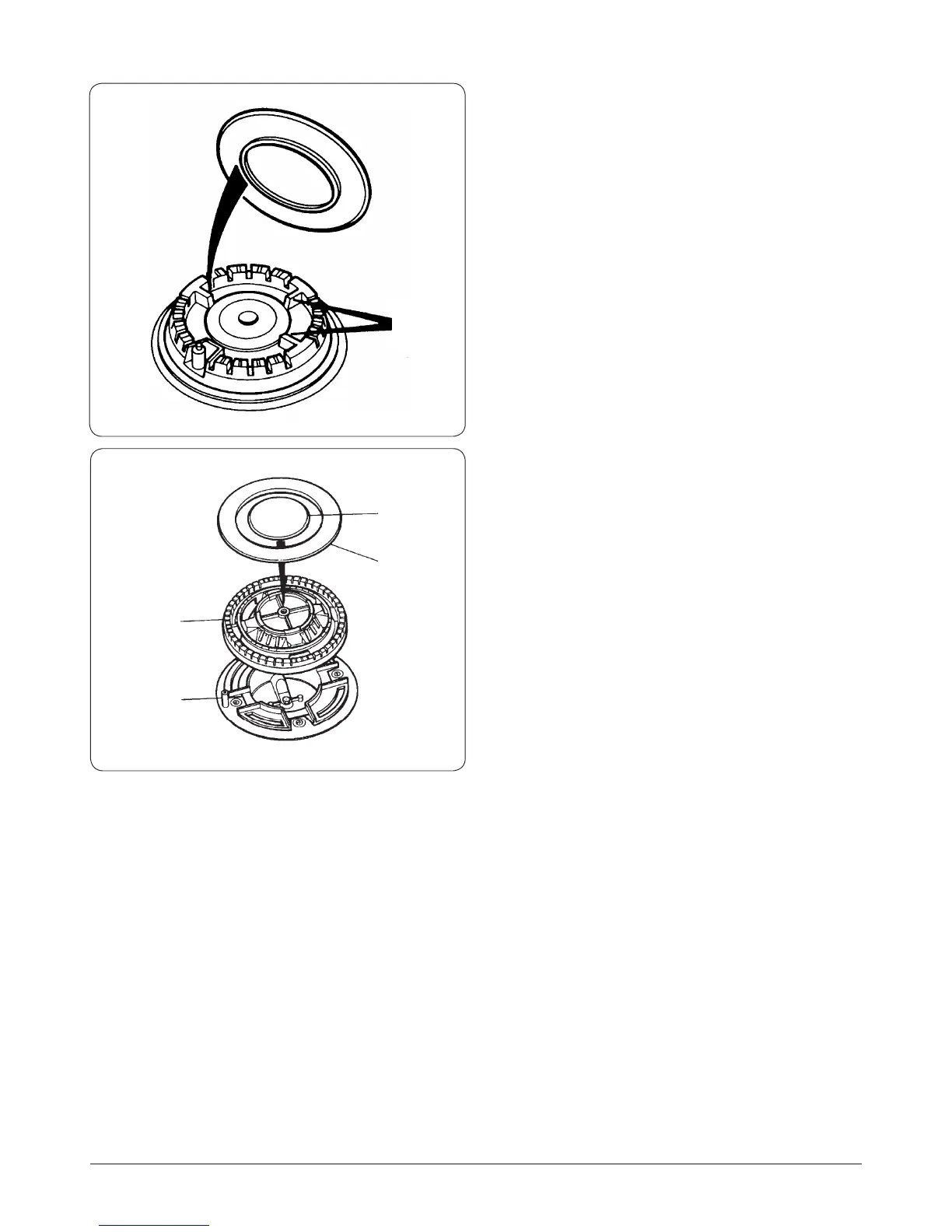

Fig. 19.3
Fig. 19.4
BURNER CAP
RETAINING
LUGS
DESN 511619
BURNER
CAP
BURNER
RING
(WOK BURNER ONLY)
BURNER
HEAD
ELECTRODE
