CHAPTER 5
26 AGCO RoGator RG900/1100/1300 Hawkeye™ Installation Manual

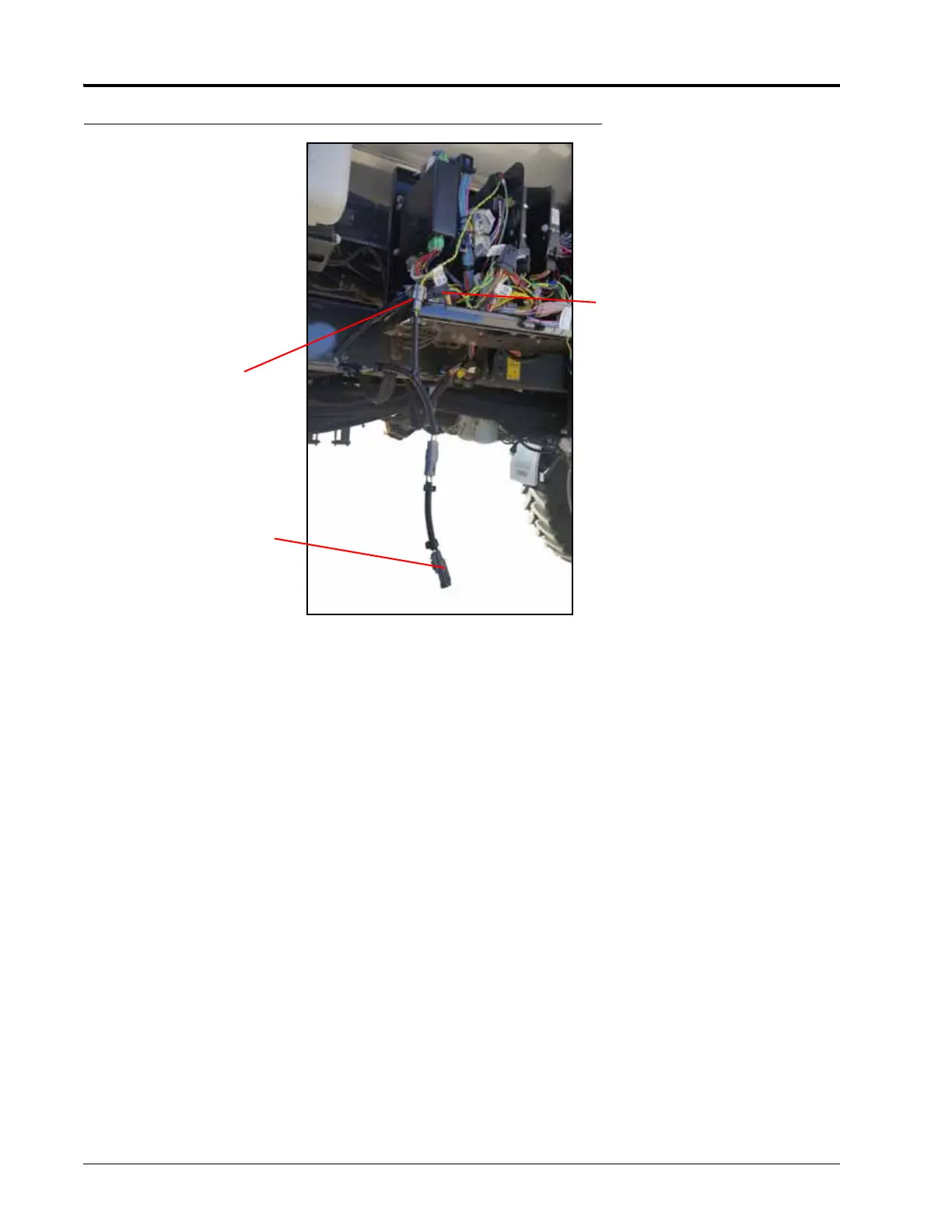

FIGURE 10. RoGator ISOBUS Tee Cable Installed
NOTE: The 3-pin cap on the end of the RoGator ISOBUS Tee Cable is an ISOBUS terminator. This must be left
in place unless Sidekick Pro Injection Pump(s) are being connected to the ISOBUS. See the Appendix
for connecting injection pumps to the ISOBUS with the RoGator ISOBUS Tee Cable.
SINGLE PRODUCT NODE REMOVAL
1. Locate the gray and black connectors on the existing single product node and the gray and black receptacles
on the Hawkeye retrofit cable (P/N 115-7303-085).
2. Disconnect the black plug from the single product node and connect to the black receptacle on the retrofit
cable.
3. Disconnect the gray plug from the single product node and connect to the gray receptacle on the retrofit
cable. The single product node will not be reused with the Hawkeye system and may be set aside.
BOOM/SPEED NODE REMOVAL AND ECU CONNECTION
1. Locate the gray and black connectors on the existing boom/speed node and the gray receptacle on the boom/
speed retrofit cable (P/N 115-7303-084).
2. Disconnect the gray plug from the boom/speed node and connect to the gray receptacle on the boom/speed
retrofit cable.
3. Insert the remaining gray plug on the boom/speed retrofit cable into the ISO boom/speed ECU (P/N 063-0173-
635).
4. Disconnect the black connector from the boom/speed node and connect to the black receptacle on the new
ISO boom/speed ECU.The existing boom/speed node will not be reused with the Hawkeye system and may be
set aside.
BIS Connector
ISOBUS Terminator
Hawkeye Retrofit
Cable
To Next Page
