(6) Dust the following parts of the
erasure unit
• Reflector
• Input and output opening of
the air stream (protection
grid)
• KG2 filter A
• Front pane B
In case of persistent dirt, you
may also use ADC Cleaner for cleaning
all the surfaces with the exception of the
inner side of the large glass plate. This
side must not be cleaned with anything
wet since a gelatin layer is attached to it.

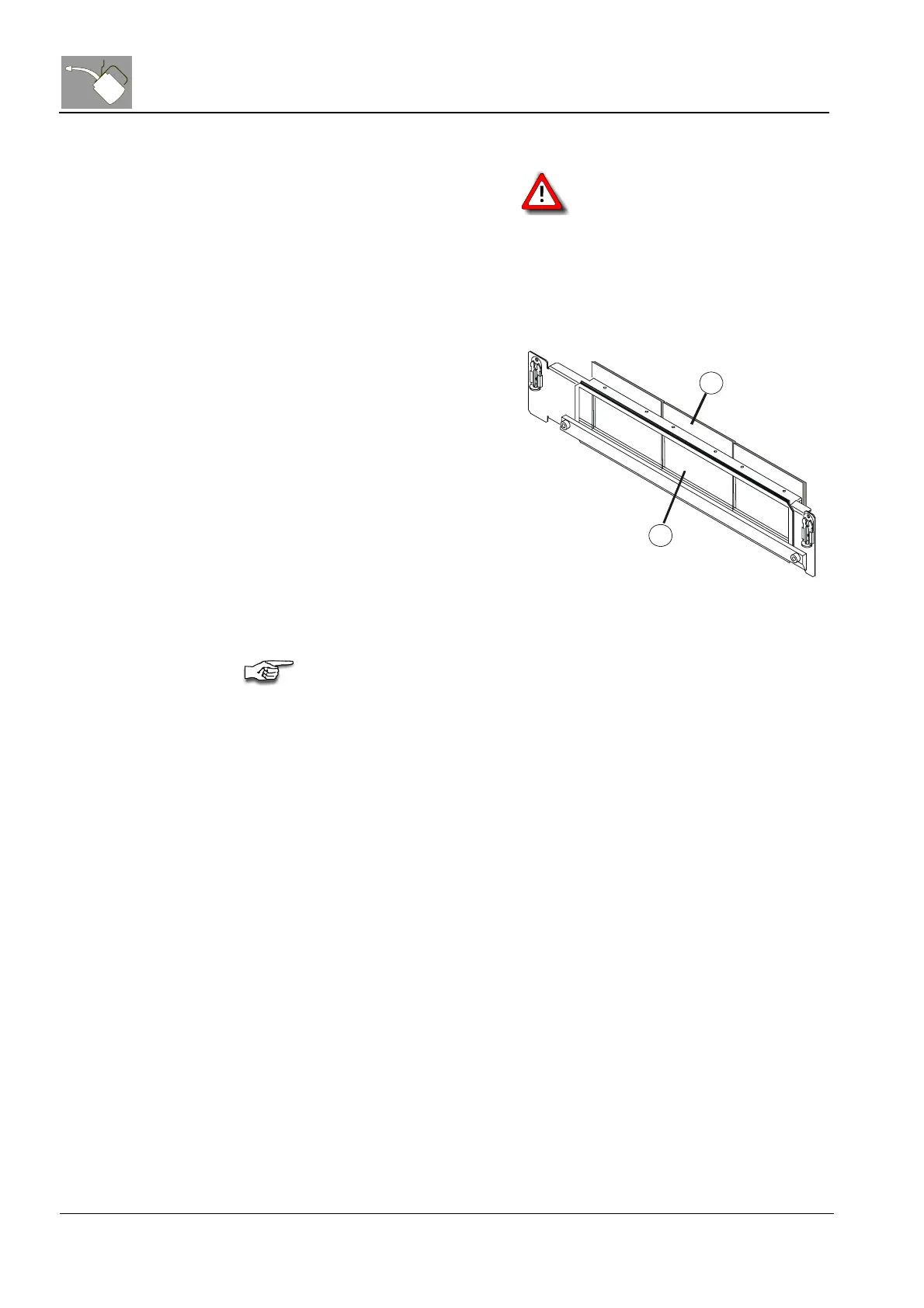

(7) Check the KG2 filter A for
damage and replace if
necessary.
A
B
Figure 9
Fan
(8) Insert the new lamps carefully
Do not touch the glass
bulbs with your bare fingers. Use a
soft cloth to insert the lamps.
(9) Check fan of erasure unit for
dust and clean if necessary.
(10) Re-insert Erasure Unit
