DD+DIS013.02E
Maintenance
Edition 1, Revision 10 ADC Solo Section 12 / 15
(Type 5155 / 100/200)
4.3 Evaluation of a Flatfield
(1) Inspect the developed image for homogeneity:
Compare the prints of the flat field sample with your exposed flat field at a
light box.
•
If there are no lines visible or the effects are less than on the example,
the image quality is all right.
•
If there are unacceptable effects, compare with the following sketches.

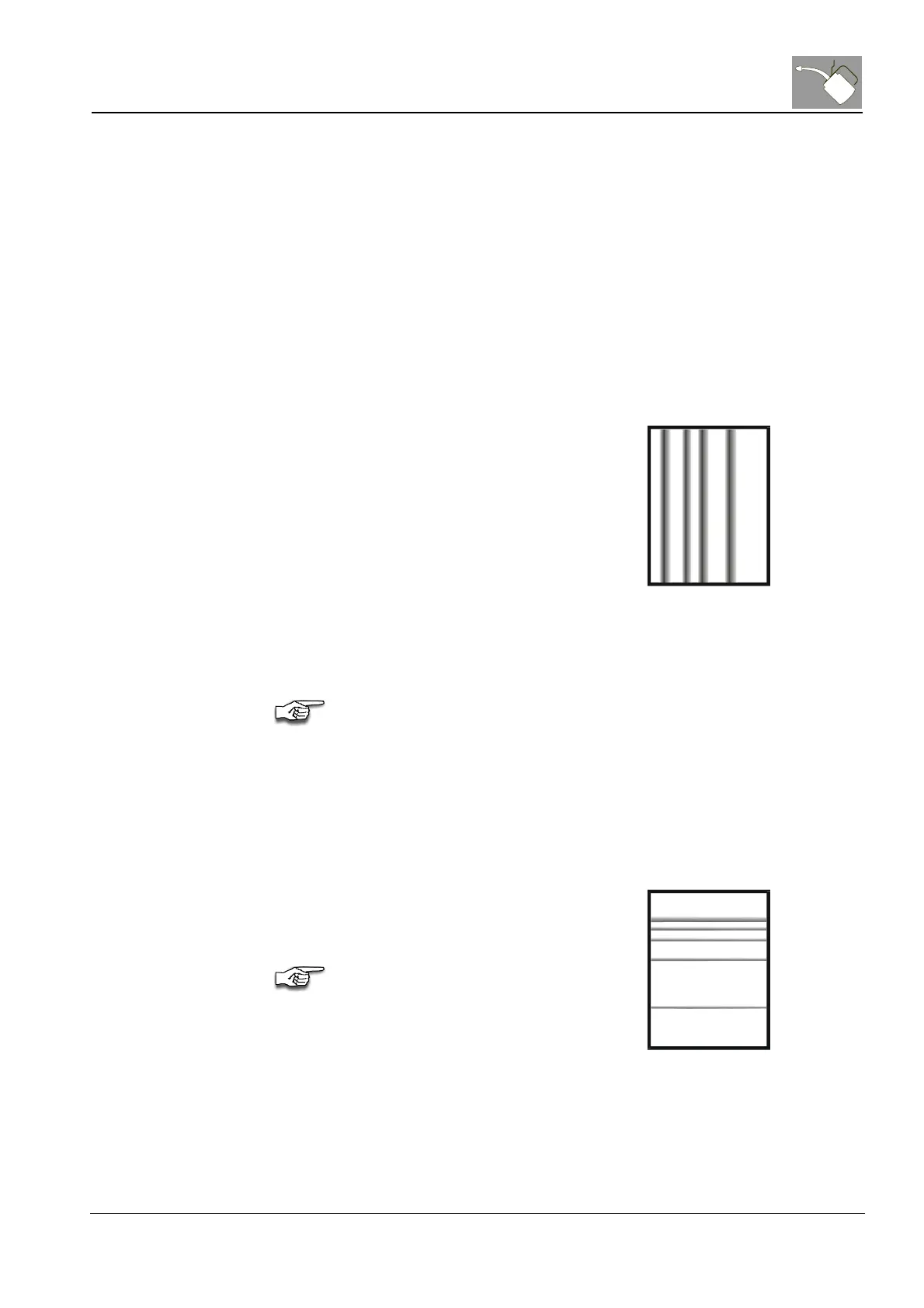

Calibration lines
Blurred dark lines in slow scan
direction on the flat field (see
beside).
• Expose another flat field and
compare it again with the
sample.
If there are still unacceptable
effects, you have to redo shading
calibration
as described in section
6.6.
Expose another flat field and
compare it again with the sample.
If there are still unacceptable
effects, please contact the Support
Center.
Figure 12
Banding
Fine sharp white or gray lines in fast
scan direction on the flat field (see
beside).
• Check diagnostic images.
If there are still unacceptable
effects please contact the Support
Center.
Figure 13
