AGFA ADC Solo - Erasure Unit

DD+DIS013.02E
Maintenance
Edition 1, Revision 10 ADC Solo Section 12 / 9
(Type 5155 / 100/200)
Suction
cups
(4) Check the suction cups position
(5) Clean the suction cups spot C
with ADC Cleaner
(6) Exchange suction cups once a
year.
(7) In case of vacuum problems,
check the suction cups by
bending up the edges (check
for tears) and replace if
necessary.
A
C
B

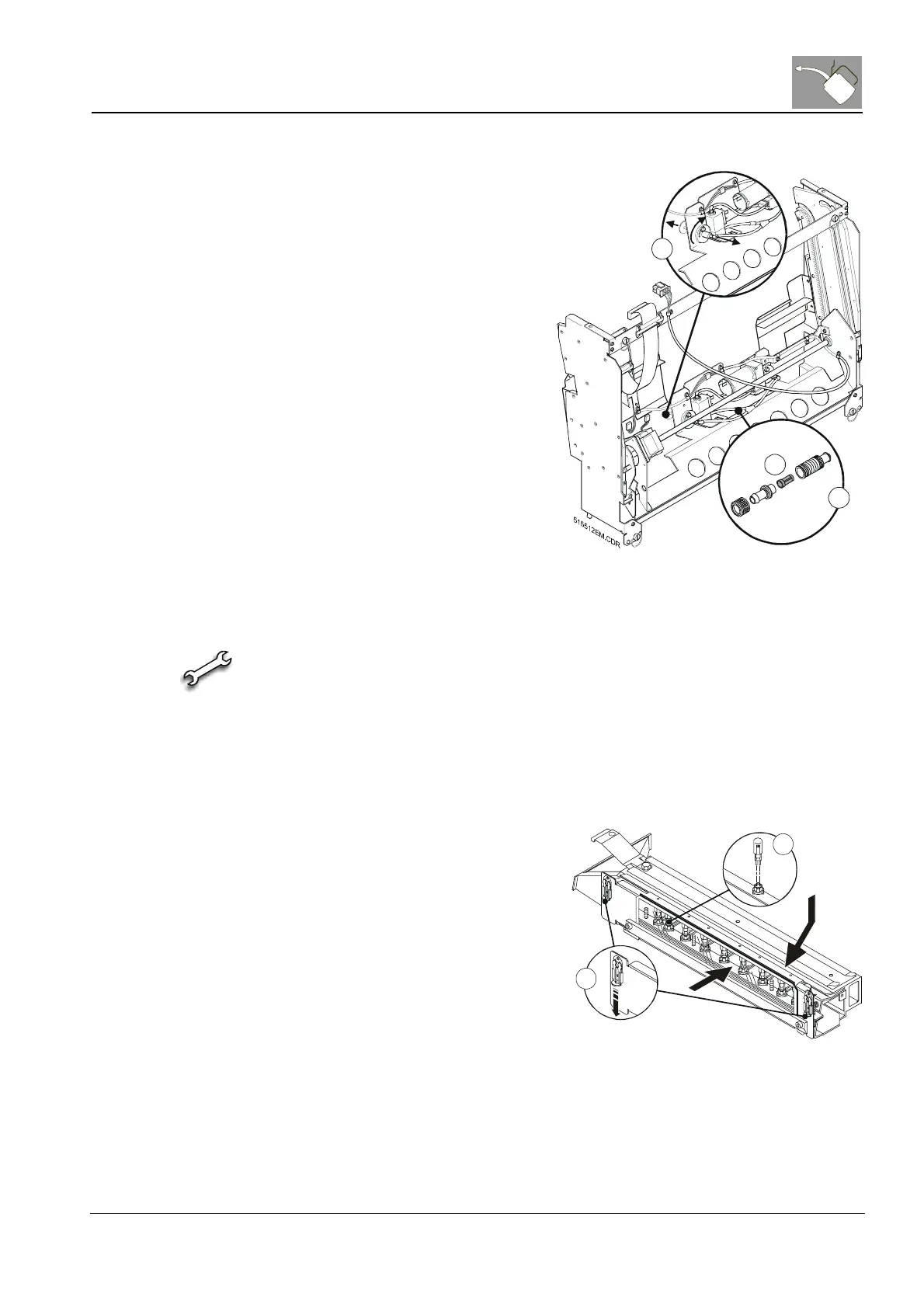

Figure 7
3.8 Erasure Unit
• Soft cloth
• ADC Cleaner
(if not available, use water)
• 10 x 100 W lamps
(CM+9.0450.6553.0)
(1) Open the front door
(2) Pull the erasure unit out and
remove it
Lamps
(3) Remove pane A
(4) Pull all lamps carefully out of their
sockets B
(5) Check all parts of the erasure unit
for damage
515512BM.CDR
A
B
Figure 8
