(2) Expose a new image plate:

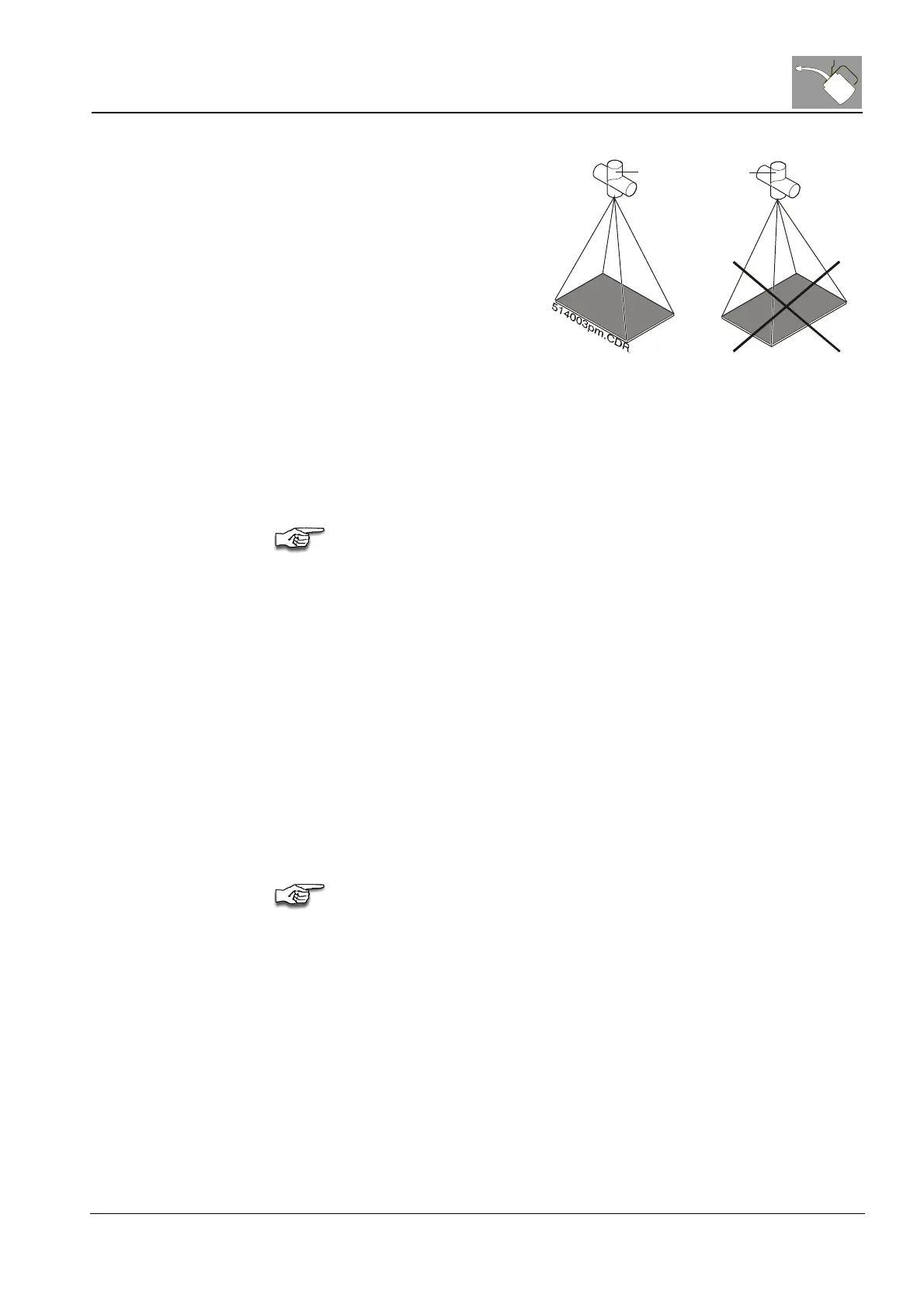

• Place the cassette in length
direction to the X-ray tube,
see figure below.
• Set the following exposure
parameters:
− 7.5 mAs, 77 kVp, 1.3 m
distance
− Doses 10 µGy (result of
setting: 7.5 mAs, 77 kVp, 1.3
m distance)
− 1.5 mm Cu-filter with small
focus
• Turn cassette by 180°.
• Expose plate a second time
by using the same
parameters.
Notice, that all exposure
parameters are approximate
values.
Rotating
Anode
Cathode
x
-ray tube
Figure 10
(3) Identify the cassette on the ID Station:
• In the <Patient name> field, type a name and a cassette format,
e.g. Flatfield 18 x 24.
• In the <First name> field, type the serial number of the digitizer,
e.g. SN1356.
• In the <Birth date> field, type the current date,
e.g. 20012001 (use date format xxyyzzzz for day/month/year).
• In the <Radiologist> list, click <SERVICE>.
• In the <Examination> list, click <system diagnosis>.
• In the <Sub-examination> list, click <Flat field>.
• Confirm the Exposure class <200>.
Make sure that the outlined areas are filled in as shown in the
example.
