27
4454C EN 2013-05-14 Maintenance
CR 35-X DIGITIZER

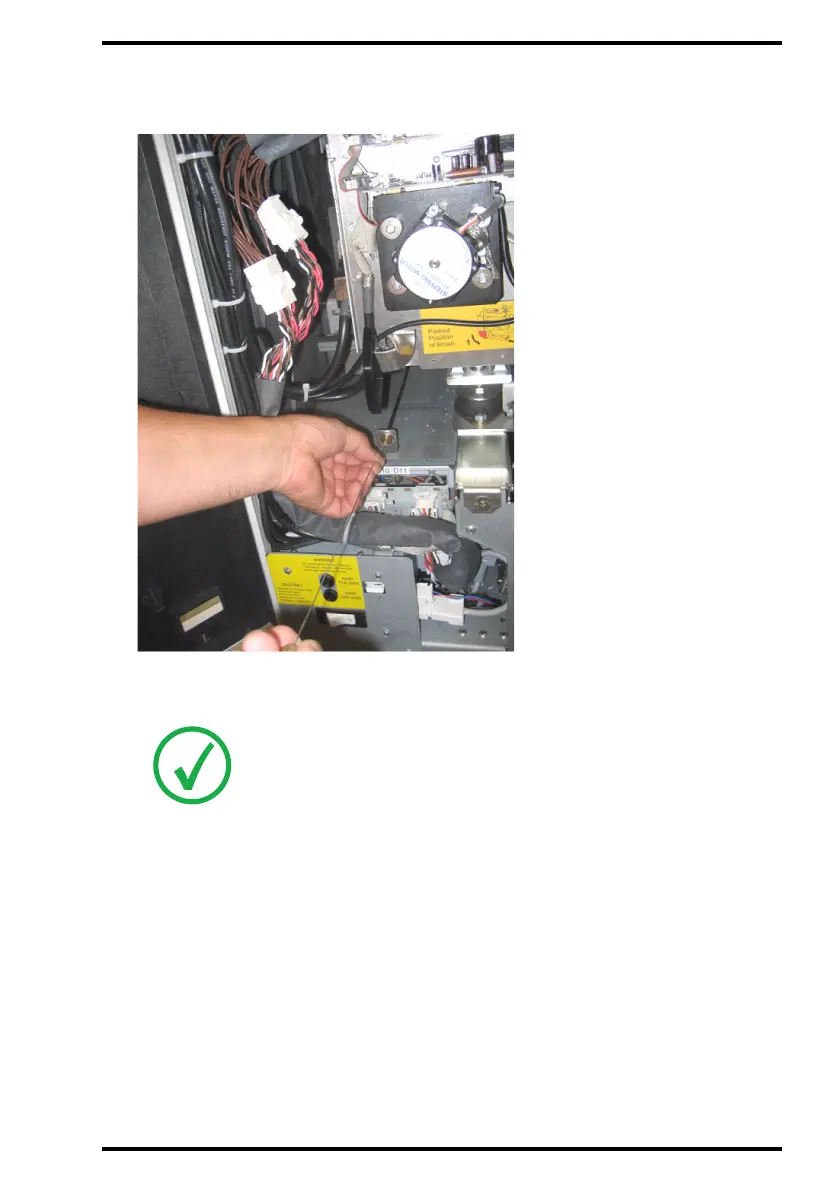

4 Hold the wire with two fingers near the housing and push it carefully towards the
housing.
5 Repeat this sequence until the head of the wire has reached the housing.
6 Then draw out the wire to its outmost position and repeat cleaning once
again.
7 Fix the wire to the housing again.
Note: Misuse of the bowden wire leads to bending. This causes a complicated
replacement f the dust brush. Do not bend!
