Configuration
The DR Detector is a component that can be integrated in an X-ray system and
that communicates to a workstation. Multiple DR Detectors can communicate
to a single workstation.
2
3
7
5
1
4
6
1.
DR Detector
2.
DR Detector battery
3.
DR Detector battery charger
4.
IR data communication unit
5.
Wireless access point
6.
Network switch
7.
Workstation

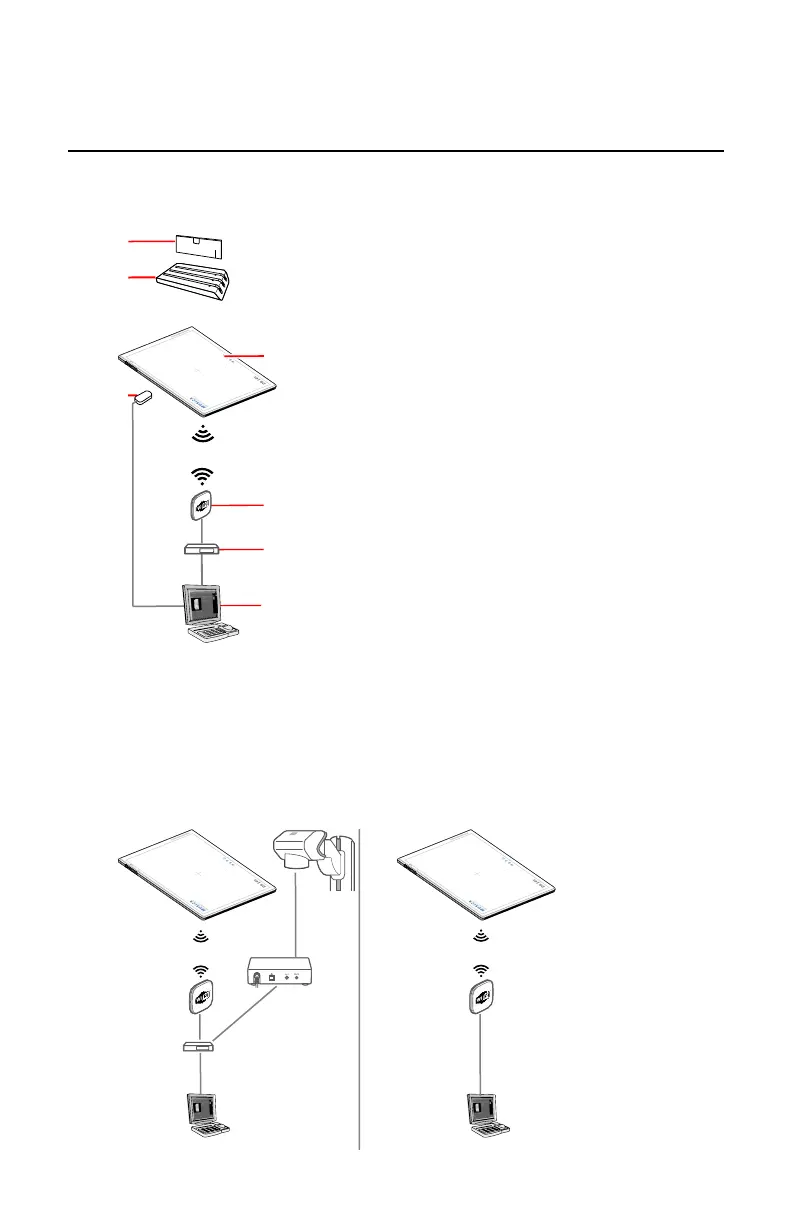

Figure 1: DR Detector configuration
