Chapter 1 — Preparing the scanner 10
1. glass plate
2. adjustable document cover
3. rulers
4. power indicator (green)
5. ready indicator (yellow)
6. transparency indicator (yellow)
7. power switch

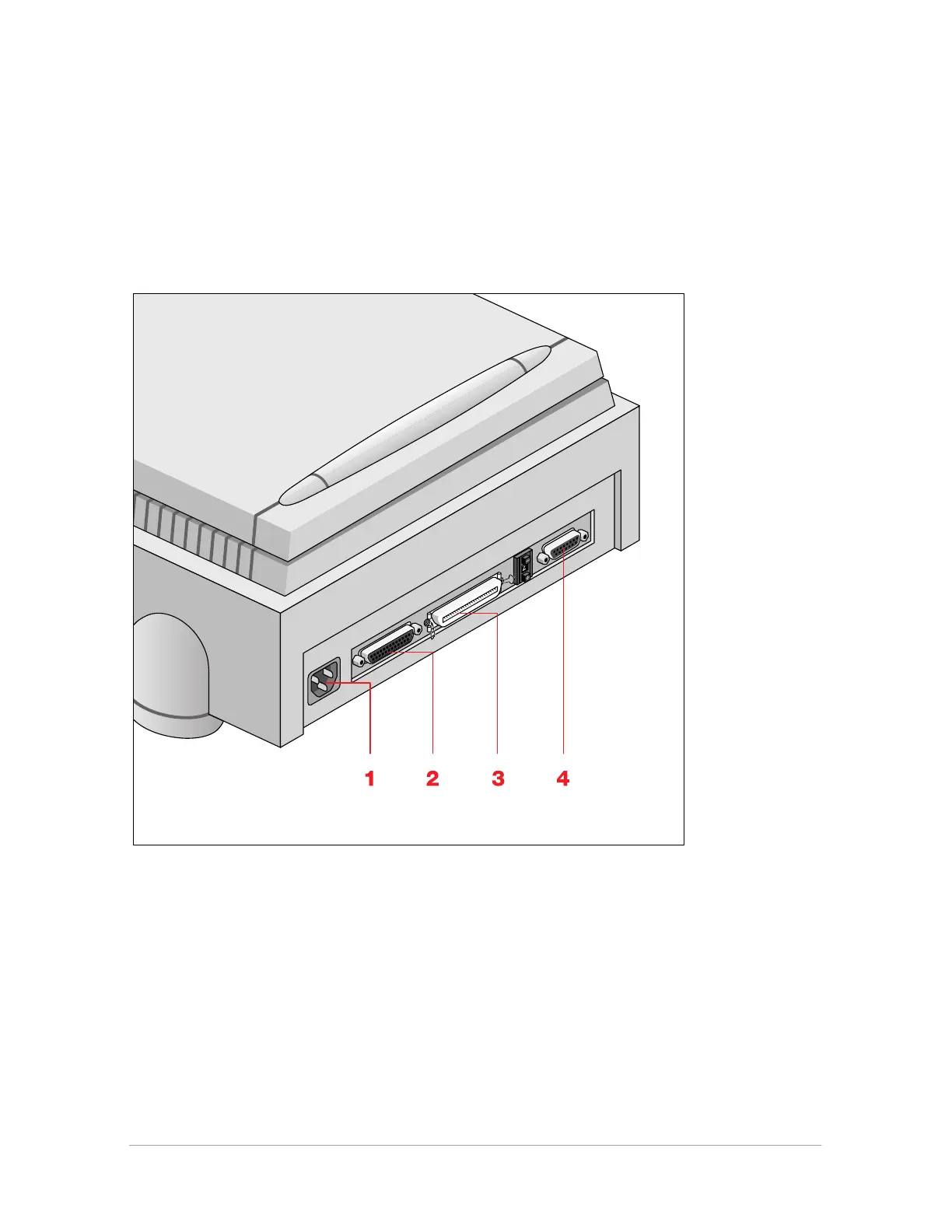

1. power connector
2. 25-pin SCSI connector
3. 50-pin SCSI connector
4. female DB 15-pin connector (for connecting the transparency option or the document feeder
option)
