Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 6-27
Programming Examples for VEE Users
Multi-Channel Sweep Measurements

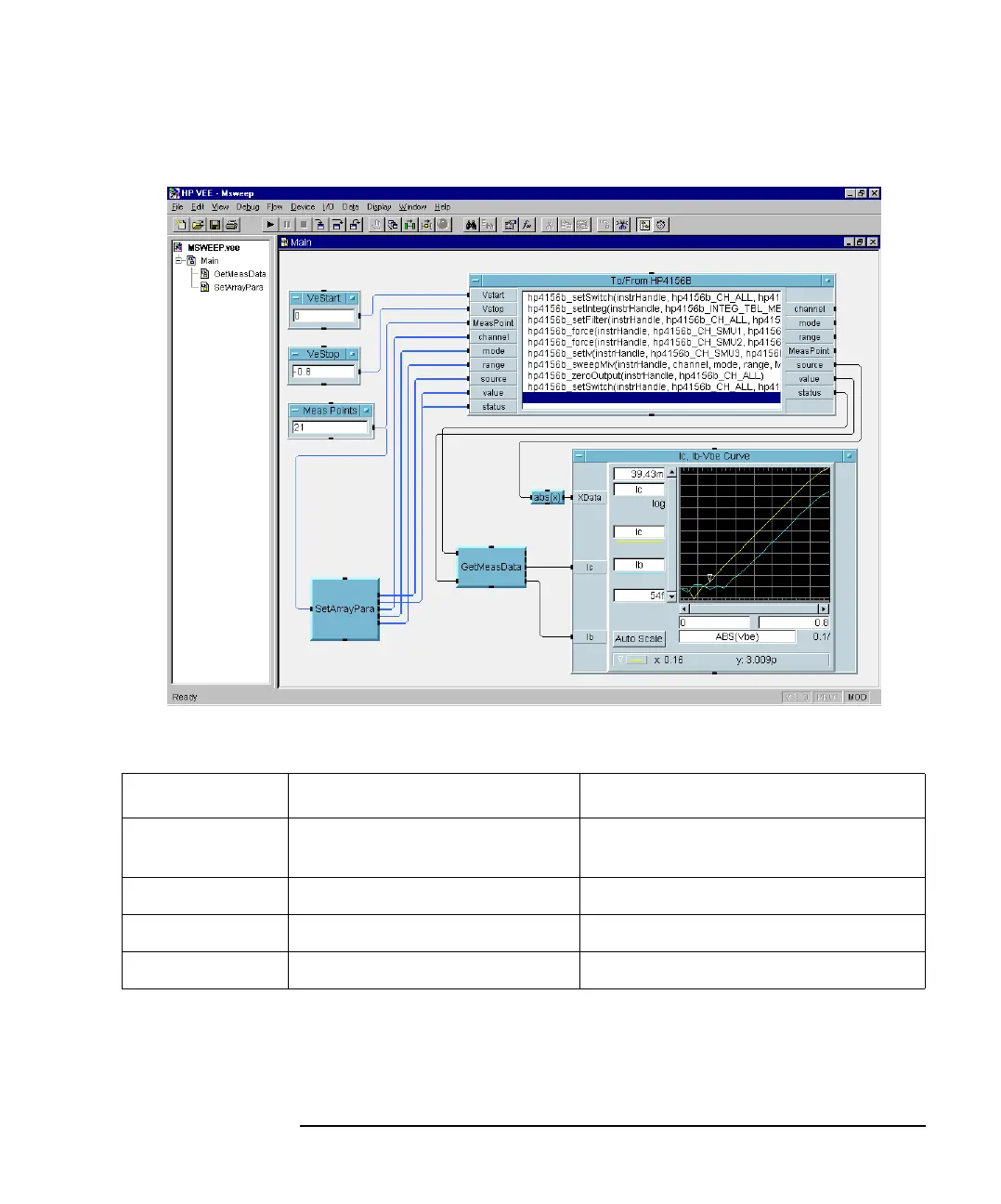

Figure 6-22 Program Example of Multi-Channel Sweep Measurement
Table 6-11 Program Explanation
Object Title Menu Explanation
VeStart, Ve St op
MeasPoints
Data-Constant-Real
Data-Constant-Integer
Enters input parameters of hp4156b_setIv
and hp4156b_sweepMiv.
To/From HP4156B I/O-InstrumentManager-Plug&play Executes measurement.
abs(x) Device-Formula Calculates absolute value of Vbe (source).
Ic,Ib-Vbe Curve Display-XvsYPlot Plots Ic-Vbe and Ib-Vbe curves.
