6-40 Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4
Programming Examples for VEE Users
Staircase Sweep with Pulsed Bias Measurements

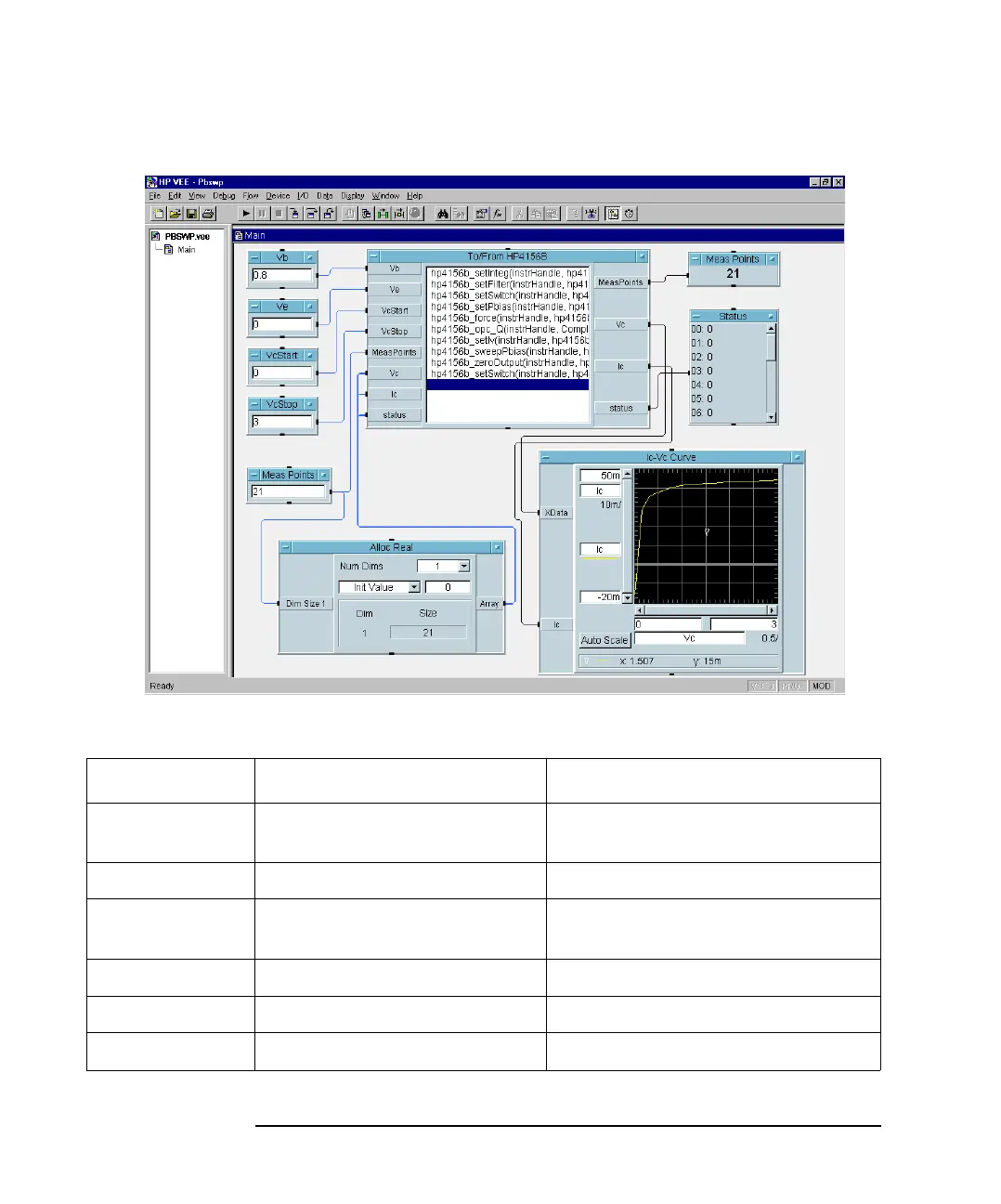

Figure 6-35 Program Example of Staircase Sweep with Pulsed Bias Measurement
Table 6-24 Program Explanation
Object Title Menu Explanation
VcStart, VcStop
Vb,Ve,MeasPoints
Data-Constant-Real
Data-Constant-Integer
Enters input parameters of hp4156b_force
hp4156b_setPbias, and hp4156b_setIv.
To/From HP4156B I/O-InstrumentManager- Plug&play Executes measurement.
AllocReal Data-AllocateArray-Real Allocates array for Vc[ ],Ic[ ],status[ ] of
hp4156b_sweepPbias.
MeasPoints Display-AlphaNumeric Displays number of measurement points.
Status Display-AlphaNumeric Displays status[ ].
Ic-Vc Curve Display-XvsYPlot Plots Ic-Vc curve.
