Programming Examples for VEE Users
Sampling Measurements

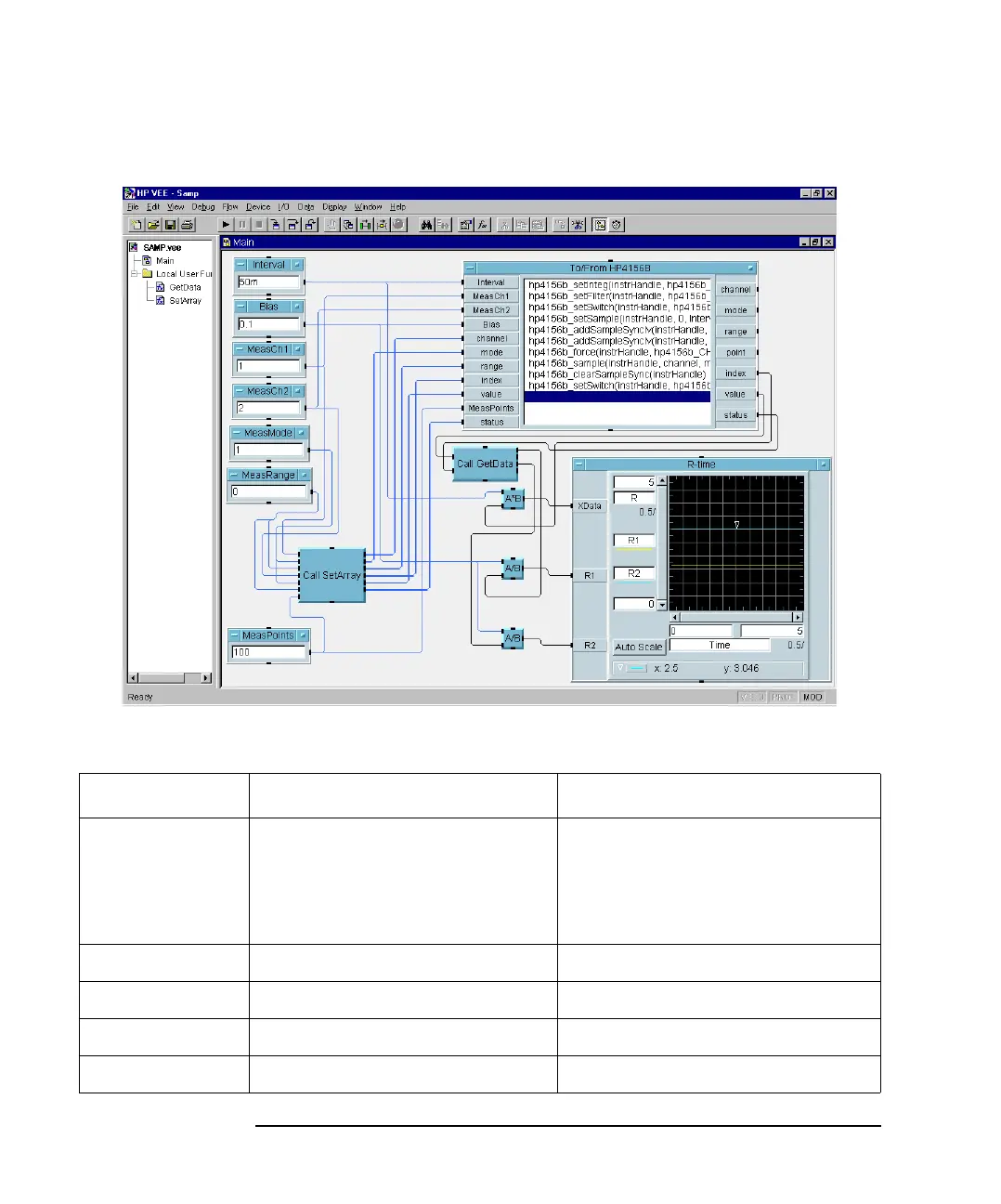

Figure 6-37 Program Example of Sampling Measurement
Table 6-26 Program Explanation
Object Title Menu Explanation
Interval,Bias,
MeasCh1,MeasCh2
MeasMode,
MeasRange,
MeasPoints
Data-Constant-Integer,
Data-Constant-Real
Enters input parameters of
hp4156b_force, hp4156b_setSample,
hp4156b_addSampleSyncIv,
hp4156b_addSampleSyncPulse,
hp4156b_sample
To/From HP4156B I/O-InstrumentManager-Plug&play Executes measurement.
A*B Device-Formula Calculates A*B to get Time value (X).
A/B Device-Formula Calculates A/B to get R1, R2 value (Y).
R-time Display-XvsYPlot Plots R-t curves.
