Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 7-39
Sample Application Programs Using VEE
Customizing Sample Programs
9. Add the Data-Constant-Real and Data-Constant-Integer objects, and set the title
to spot_id and spot_id_s, respectively. Then enter “1u” to the entry field of the
spot_id object.
10. Create the spot_id and spot_id_s output terminals in the Meas 4155 (Offline)
object.
11. Connect the line between the spot_id object and the spot_id terminal.
Then connect the line between the spot_id_s object and the spot_id_s terminal.
12. Connect the line between the spot_id terminal of the Meas 4155 (Offline) object
and the JCT object connected to the spot_id terminal.
Then connect the line between the spot_id_s terminal of the Meas 4155 (Offline)
object and the JCT object connected to the spot_id_s terminal.

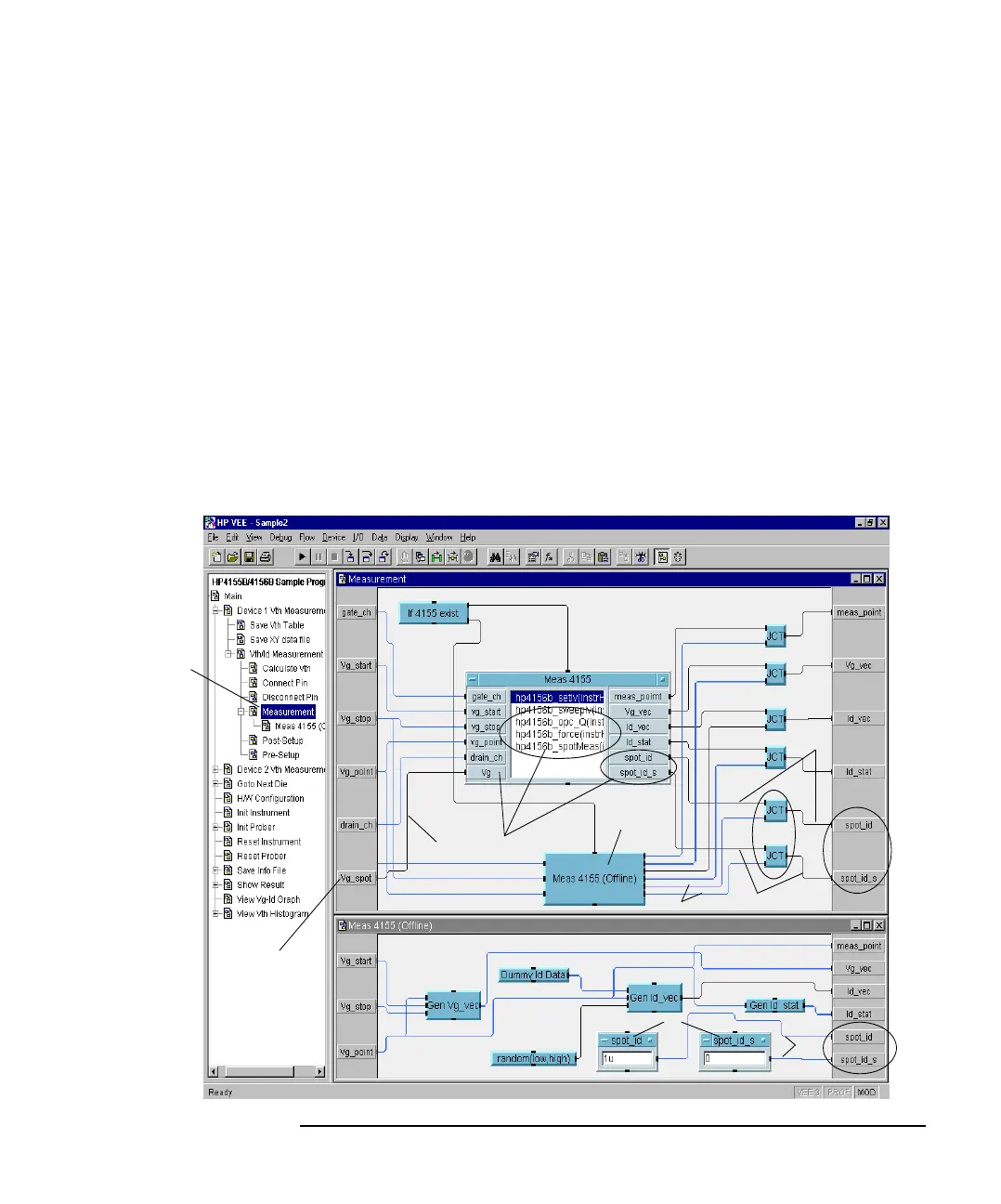

Figure 7-25 To Add the Measurement Function and Dummy Data
1
2
3
5
9
8
6
4
7
7
10
11
12
