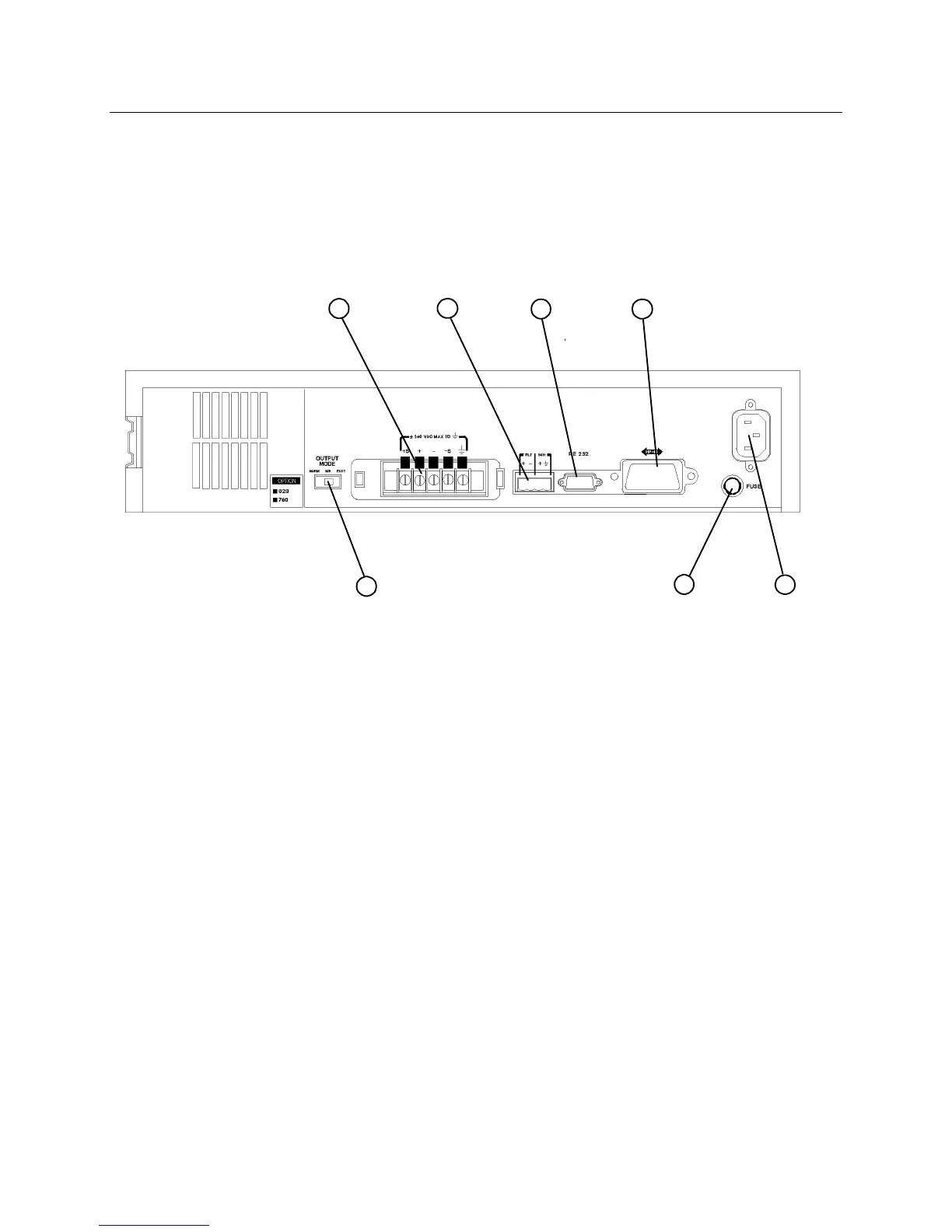

The Rear Panel - At a Glance
jGPIB (IEEE-488)
interface connector
kRS-232 interface
connector
lINH/FLT (remote
INHibit / internal
FauLT) connector.
Connector plug is
removable.
mOutput and
Remote sense
terminal block.
3
2
1
5
6
7
4
nFast/Normal switch oFuse holder pPower cord
connector (IEC 320)
Use the front panel Address menu to
♦ Select the GPIB or RS-232 interface (see chapter 4 in User’s Guide)
♦ Select the GPIB bus address (see chapter 4 in User’s Guide)
♦ Configure the RS-232 interface (see chapter 4 in User’s Guide)
